Endless: For the first time ever, customers can specify a lighting solution that combines the flexibility and prac - ticality of a trunking system with the rugged durability of an IP65 luminaire.
Resistant: The unprecedented use of three sealing components shows how TRINOS has been specifically designed to guarantee optimum protection and performance at all times.
Sealing cover and sealing end cap

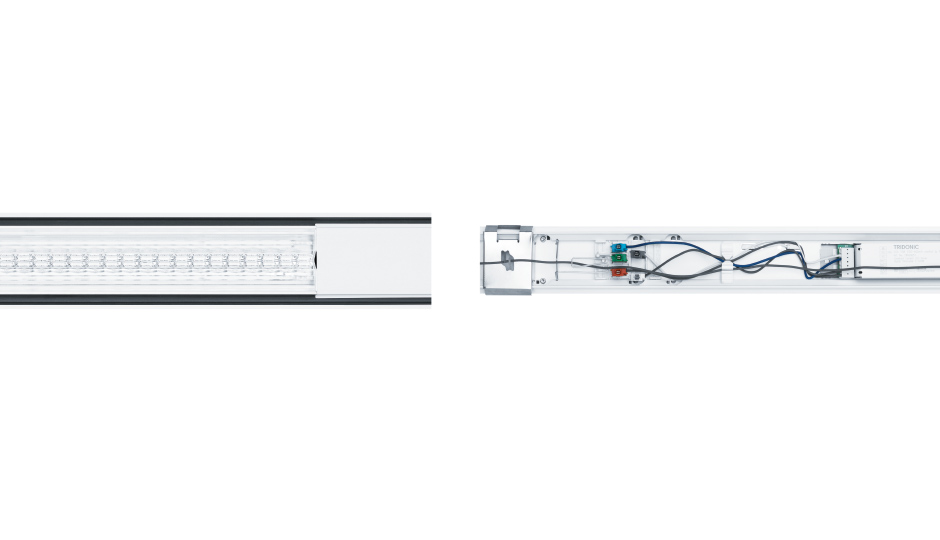

LED batten luminaire
Through-wiring
Sealing profile
Suspension
and trunking
Protection at the end
Protection from below
Protection from above

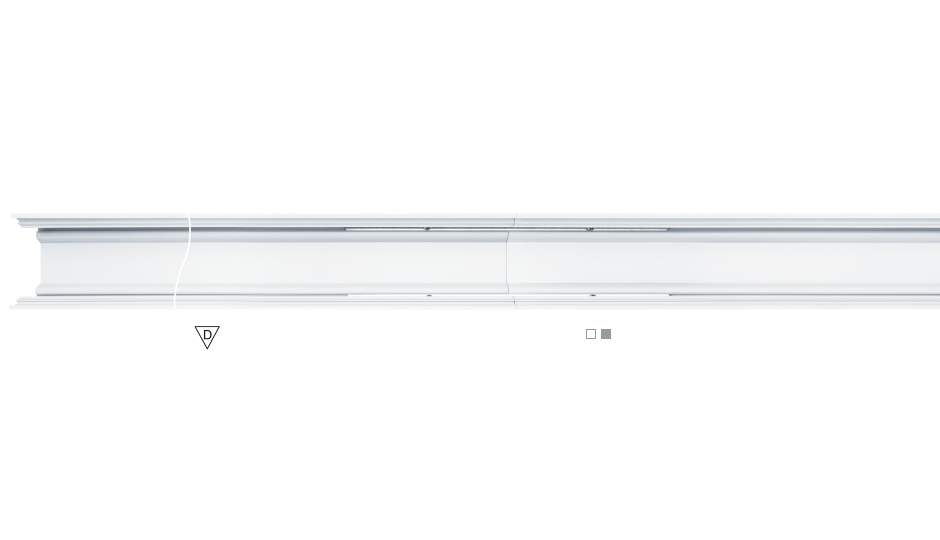

Trunking available in white or silver
Suitable for flammable locations according
to EN 60598-2-24
Fastening with Clix technology
Ceiling installation with ceiling mounting spring or as rope or chain suspension
Supplied automatically:
mechanical trunking connectors for stable joints
Powder-coated aluminium:
light, extra strong and highly resistant to corrosion

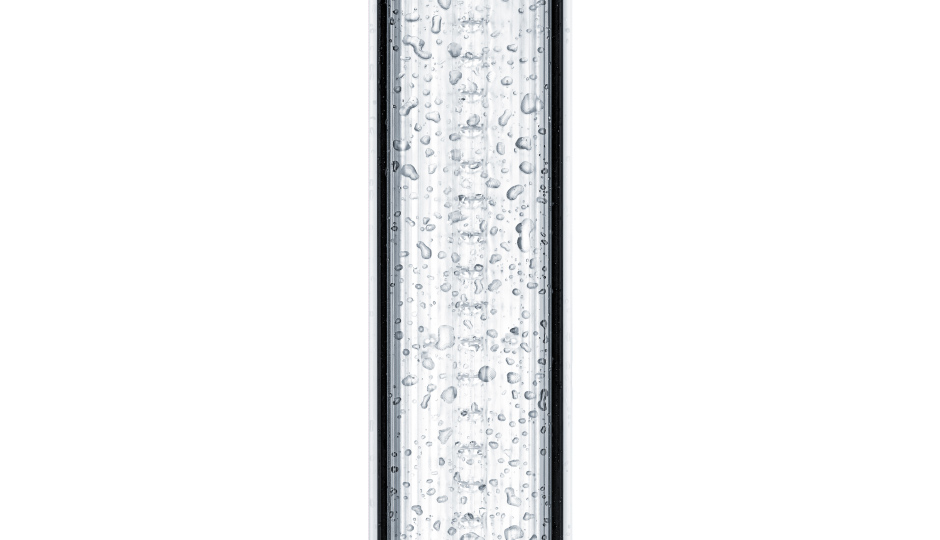

IP65 Dust-tight and protected against jets of water

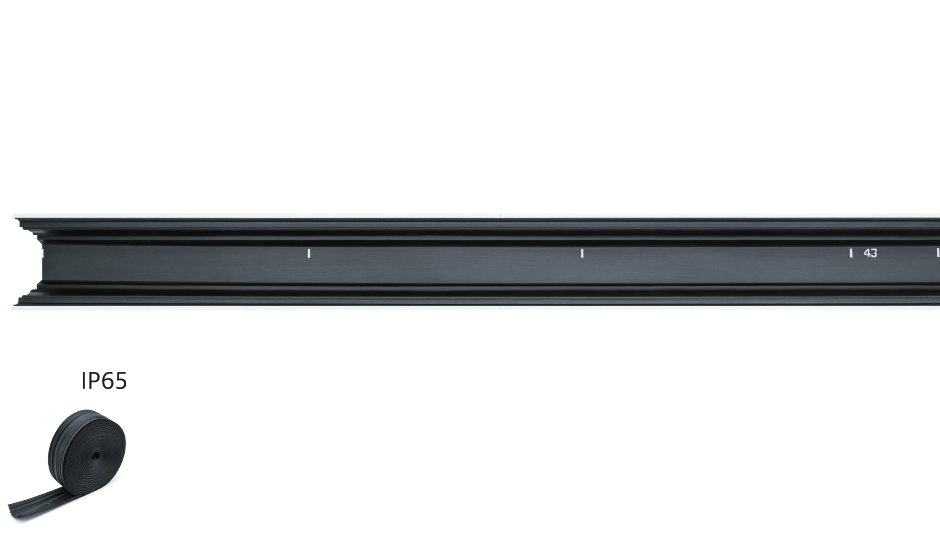

Up to 50 metres of sealing profile on one roll
Positioning of the metric batten luminaires and lighting modules is helped by the clear marking of 250 mm increments and additional information about the remaining length in metres.
Thermoplastic elastomers (TPE):
a proven sealant material for industrial applications that is blackened using soot. TPE combines excellent resilience with UV protection.
Perfect sealing of the joints and access points with a continuous sealing profile
Up to 50 m of through-wiring on one roll
Five outlets for mains power supply (5 x 2.5 mm² ) with separately switchable circuits for simple lighting control in triple circuit
Four optional poles for two independent emergency lighting circuits
(4 x 1.5 mm² ) with

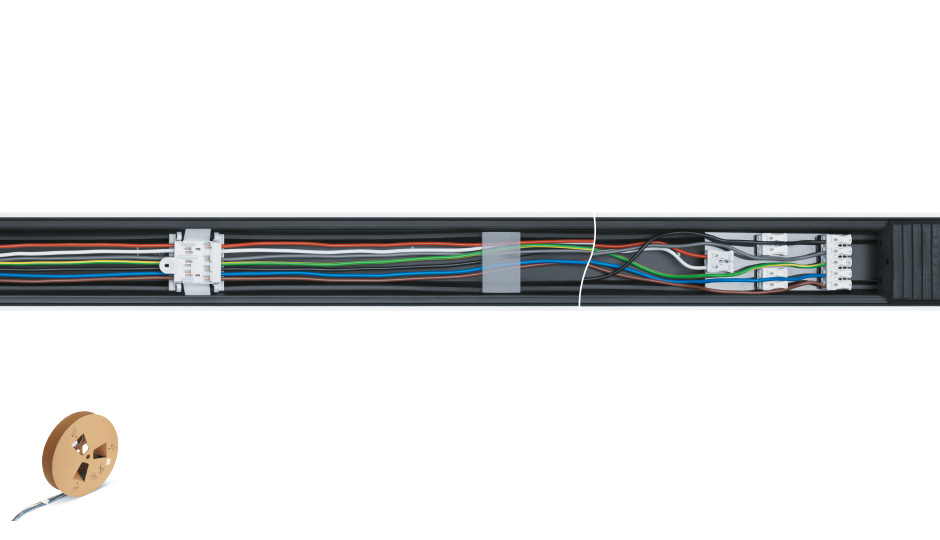

11-pole wiring
Two control lines
for brightness control
(2 x 2.5 mm² )
Number of wire holders in each delivery:
2 pieces per socket with a socket spacing of 1.5 m
3 pieces per socket with a socket spacing of 2 m
DALI and DSI-dimmable LDE control device with integrated SwitchDim function for easy dimming via standard buttons. Suitable for use in groups or central battery systems
Optional: IVG control device
Plug-socket system for the electrical connection and
tool-free adjustment of the phases on the plug
Batten spring for easy mounting in the trunking rail (with an audible “Clix” to indicate secure fixing)
White or silver cover strips provide a clean transition between connected trunking rails
Insert the cables as required from the end or from above
Impact-resistant against up to 2.0 joules of impact energy
Sealing cover with protective film
Sealing caps support the IP65 protection at both ends
Cover strips to protect the feeder

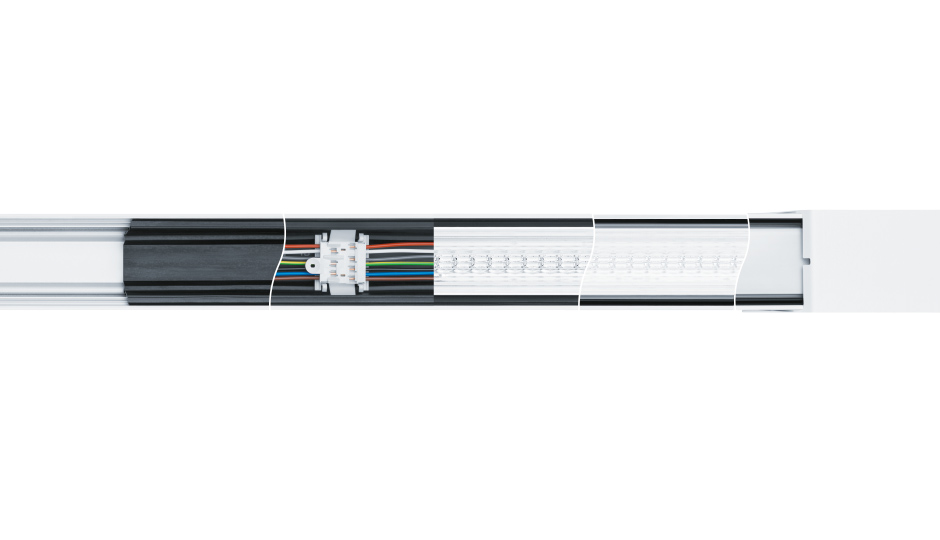

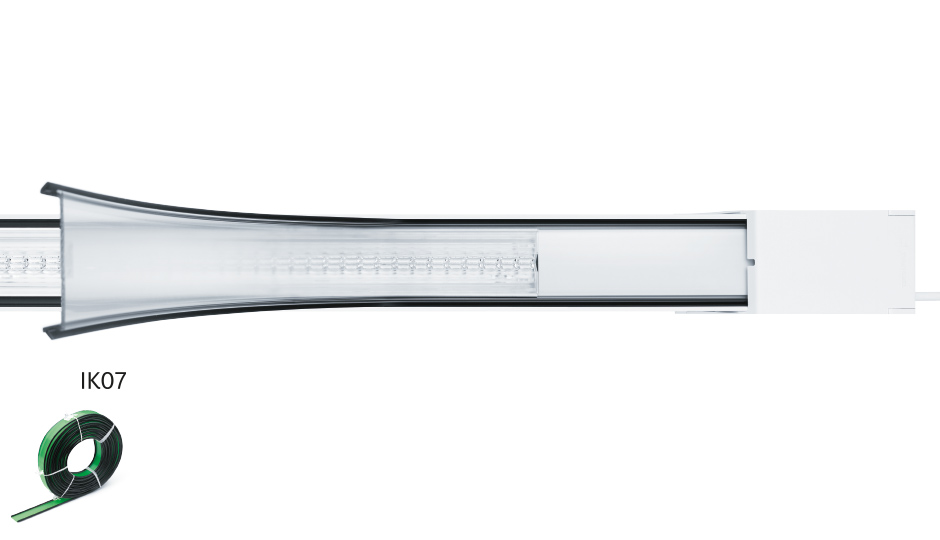

Rollable continuous optics on the underside of the luminaire provide the perfect seal for the whole length of the system
9 The TRINOS trunking is now perfectly protected from all sides.
8 Close the end cap
7 Mount the sealing cover with the installation tool along the entire length of the trunking rail.
6 Connect the end cap and screw on. Then press in the foam gasket, insert the wiring and position the feeder.

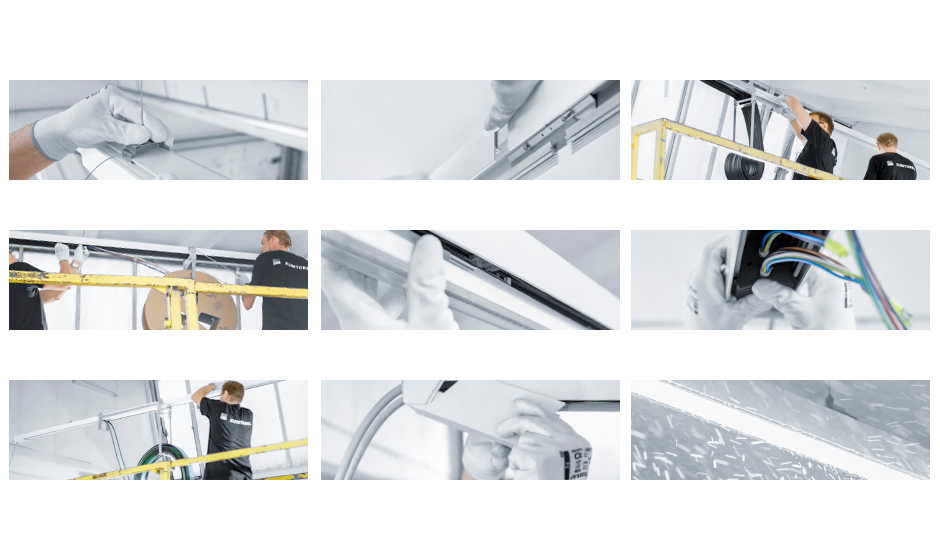

5 Position the batten luminaires for the electrical and mechanical connection according to the socket spacing. (audible “Clix”)
4 Insert the through wiring with the installation tool. Sockets and wire holders can simply be clicked in (with Clix feedback) and moved to the appropriate position.
3 Secure the sealing profile along the entire length of the trunking with the help of the installation tool.
2 Connect the trunking mechanically.
1 Use the Clix bracket to suspend the trunking or mount the trunking on the ceiling.
