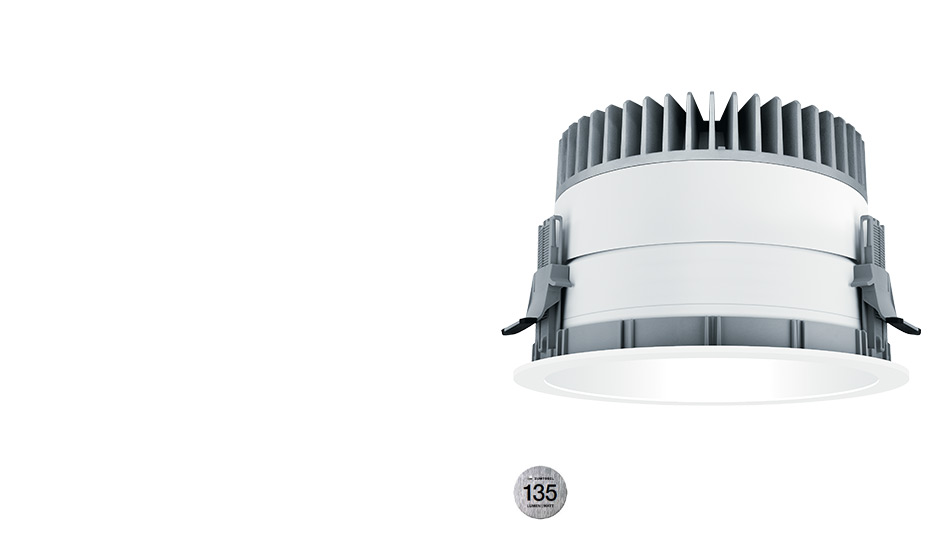

PANOS INFINITY / EVOLUTION Q

LED downlight range

LED downlight series for functional and architectural lighting.
Unrivalled in lighting quality and energy efficiency.

PANOS INFINITY / EVOLUTION Q

Outstanding lighting quality

Highest luminaire efficiency
  • Luminaire efficiency of up to 135 lumens per watt
    owing to innovative LED multi-channel technologies incorporating red/white boards

Powerful lumen packages

  • Luminous flux of luminaire: 800, 1000, 1800, 2400 or 5400 lumens
  • Efficient alternative to all single or twin-lamp downlights fitted with 18 W, 26 W or 32 W compact fluorescent lamps

Dimming or switching

  • The PANOS infinity standard version is DALI dimmable
  • Additional potential savings thanks to intelligently controlled lighting solutions, which reduce energy consumption
    by 70 percent
  • PANOS evolution comes with a switchable 230 V converter as standard, but is optionally also available with DALI control gear.

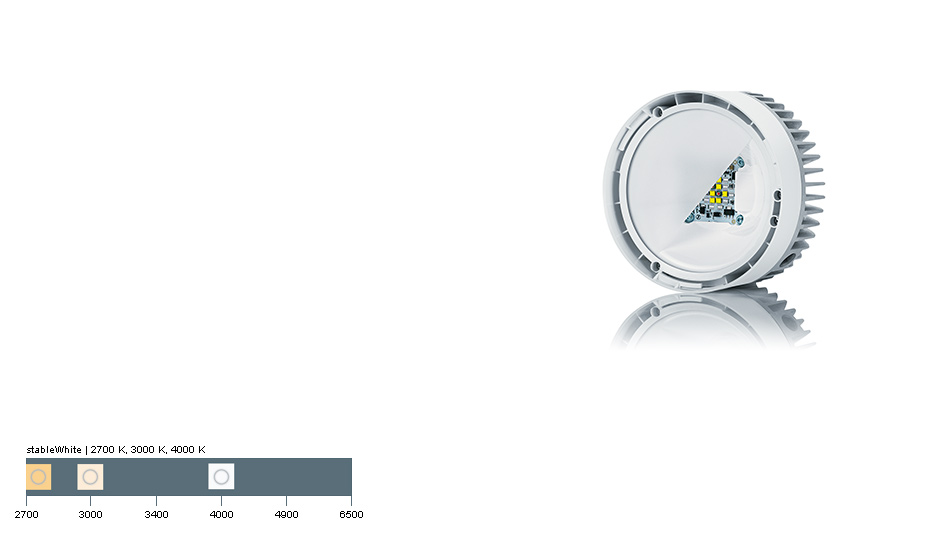

PANOS infinity

  • Luminaire efficiency of 135 lumen per watt
  • With Ra levels exceeding 90 and MacAdam 2, PANOS infinity ranks first among LED downlights in terms of quality
  • Red/white multi-channel technology ensures intelligent interaction of high-efficiency white and red LEDs therefore for outstanding luminaire efficiency and colour rendering over the entire service life
  • Low luminous flux reduction of only 5 % (L95) over a service life of 50,000 hours
  • Optionally available with colour temperatures of 4000 Kelvin and 3000 Kelvin

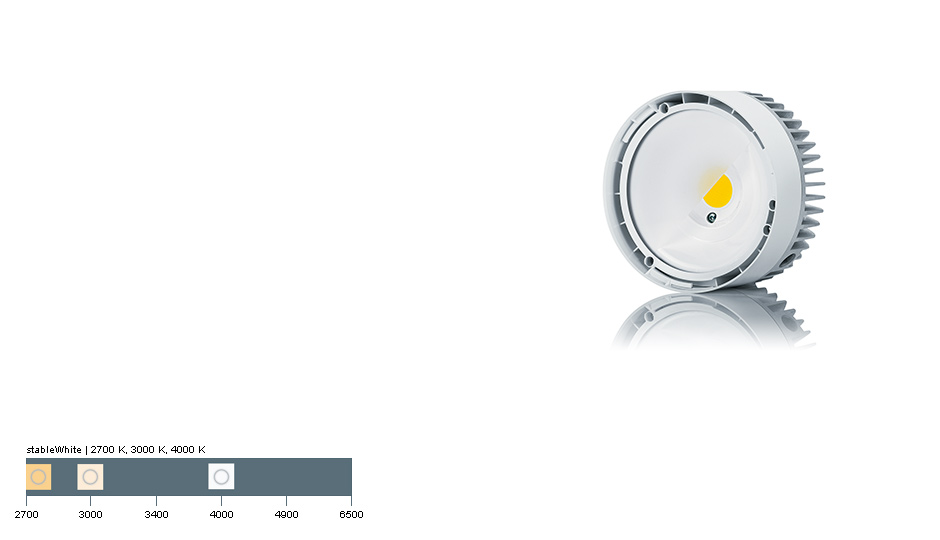

PANOS evolution

  • Boasts many product features of the PANOS infinity
  • Efficient and at the same time powerful single-channel phosphor LED modules with up to 120 lm/W luminaire efficiency
  • Colour rendering of Ra > 80
  • Proven technologies and an efficient heat management guarantee an excellent lighting quality with a rated service life of 50,000 hours L85
  • Optionally available with colour temperatures of 4000 Kelvin, 3000 Kelvin

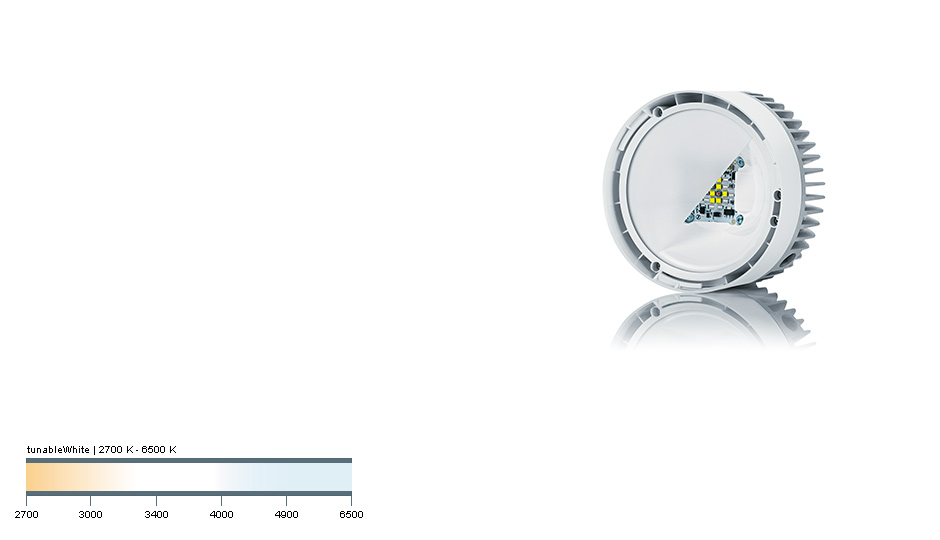

PANOS infinity tunableWhite

  • Unique Pi-LED technology

  • The whole white range from 2700 K to 6500 K is covered

  • Colour rendering index of Ra 90 at any colour temperature

  • Colour temperature can be individually adjusted to follow the natural course of daylight, for instance, or to provide accent lighting to object surfaces

  • Controlled via DT8 2010


tunableWhite by Zumtobel: zumtobel.com/tunablewhite

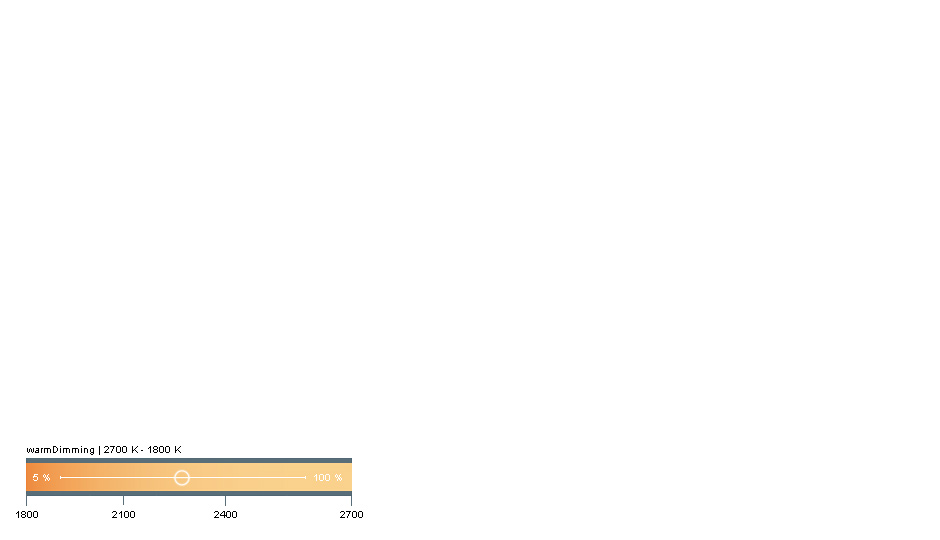

PANOS infinity warmDimming

  • warmDimming technology allows for pleasantly warm light at low illuminance levels, similar to light produced by a classic light bulb

  • Colour temperature of 2700 K at full illuminance

  • Reduced to 1800 K at lowest dimming level

  • Colour sequence along the Planckian curve with levels of Ra 90 across the entire colour spectrum ensures maximum lighting quality
Glare-free, highly efficient light at the workplace

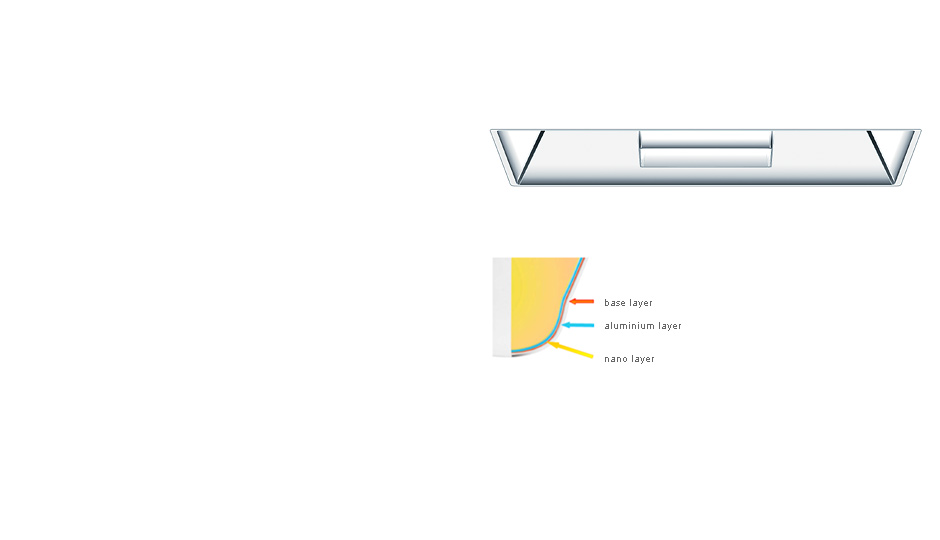

  • High-quality reflector technology with precision formed reflectors made of high-quality polycarbonate ensures optimum light distribution
  • All PANOS infinity and PANOS evolution downlights meet the requirements specified in EN 12464 for lighting in offices and communication rooms
  • Glare reduction factor UGR < 19 for high version via high-quality FAL or AL reflectors
  • Good glare control for low version (installation depth <90mm) via internal glare control ring as an accessory, which is fixed in the reflector (also suitable for frameless version)
  • Use of sputter technology for FAL and AL surfaces. The ultra-thin aluminium surface, applied in a vacuum process, achieves the highest efficiencies with a high degree of visual comfort due to the darklight effect. The reflectors are iridescence-free and always shine due to easy cleaning.
Second-to-none in efficiency
PANOS infinity
PANOS evolution
PANOS infinity tunableWhite
PANOS infinity warmDimming
Glare-free, highly efficient light at the workplace

PANOS INFINITY / EVOLUTION Q

Future-proof technology concept

Highly efficient passive cooling system made of aluminium
"BEST-IN-CLASS" LED
Highly efficient lighting chamber
High-quality reflector technology
Even the standard versions of PANOS infinity and PANOS evolution provide a high protection rating of IP44. If an additional cover is used, even a rating of IP54 is possible.

PANOS INFINITY / EVOLUTION Q

Future-proof technology concept

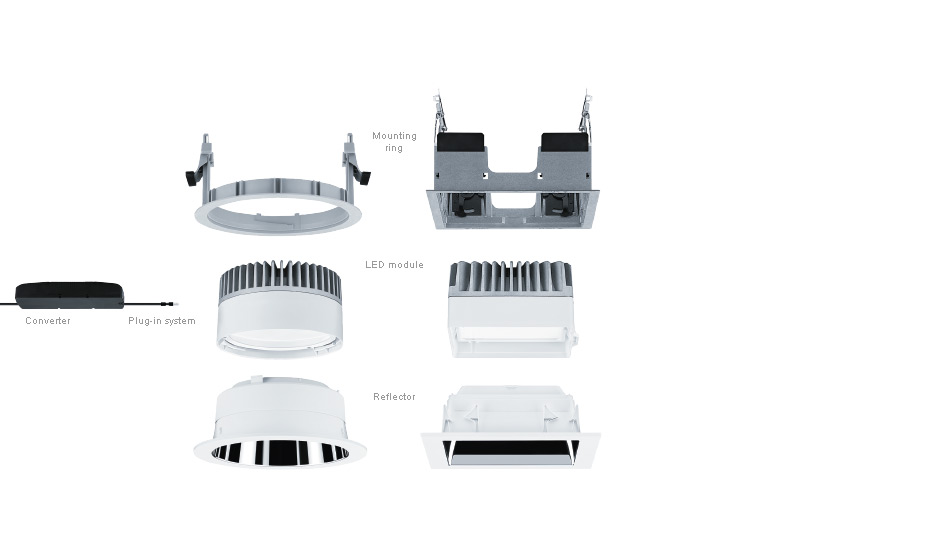

Future-proof modular system
  • Modular cartridge system – just a few steps required to replace LED module
  • LED mixing chamber and cooling system combined to form a unit, provide thermally ideal connection of LEDs to heat sink
  • Control gear with spacious wiring compartment and through-wiring option



Easy to install

  • Tried-and-tested installation functions have been optimised
  • Reflector attached to LED module via twist-and-lock fastener
  • Mounting ring for installing luminaire on the ceiling
  • Planar rings for fastening frameless luminaires

PANOS INFINITY / EVOLUTION Q

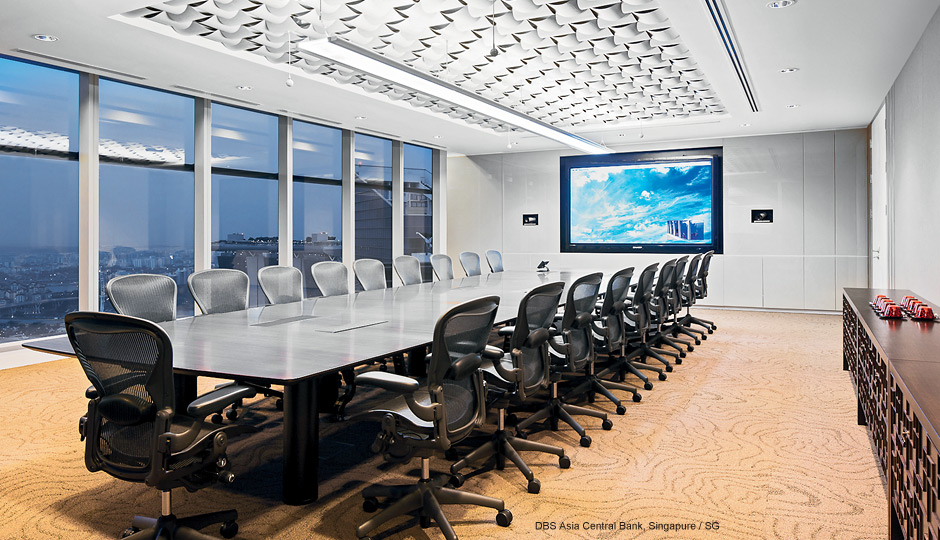

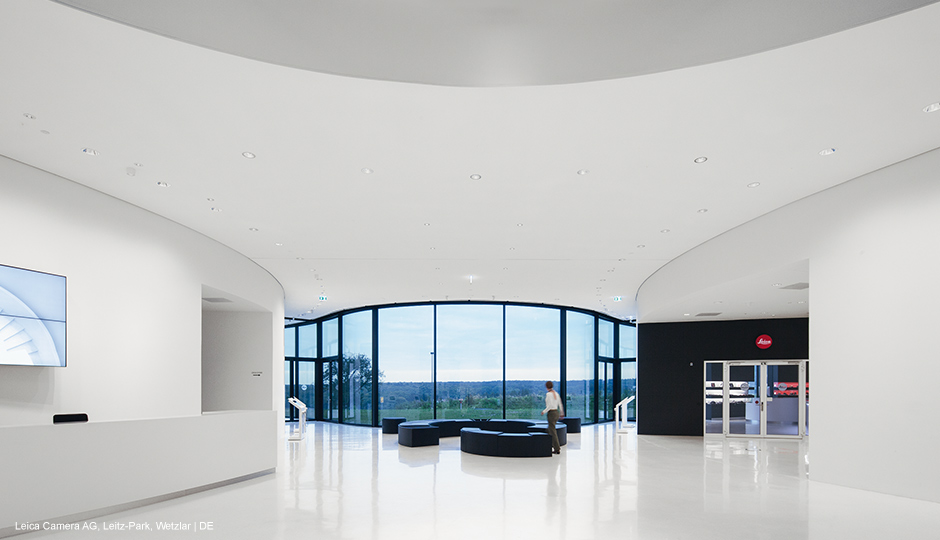

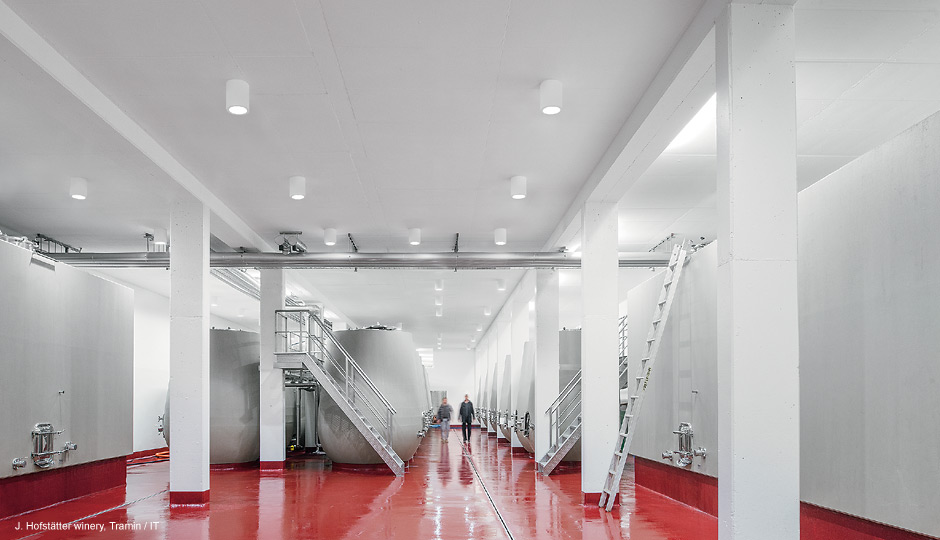

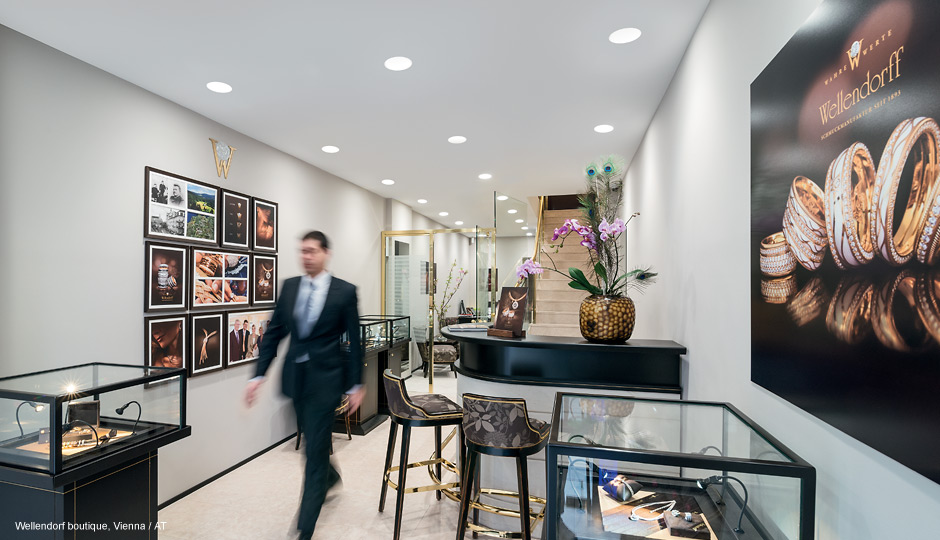

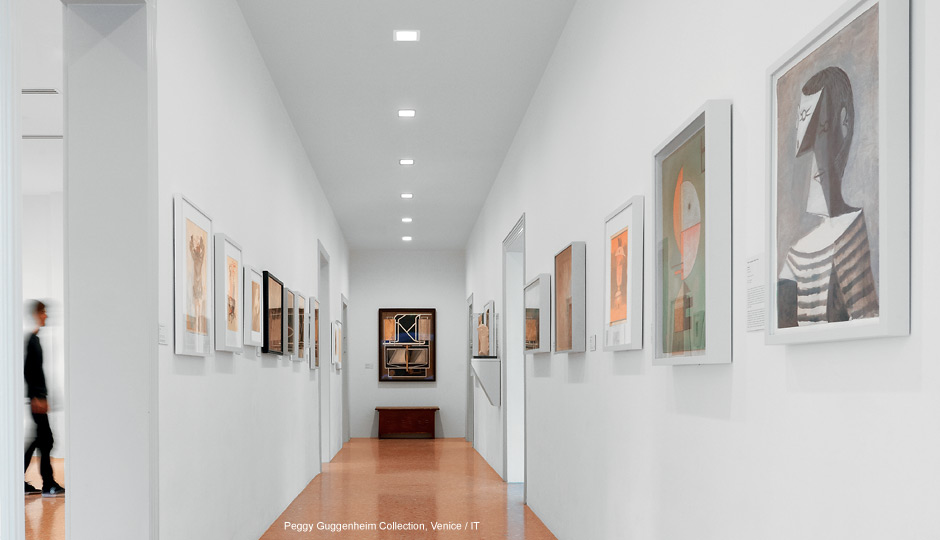

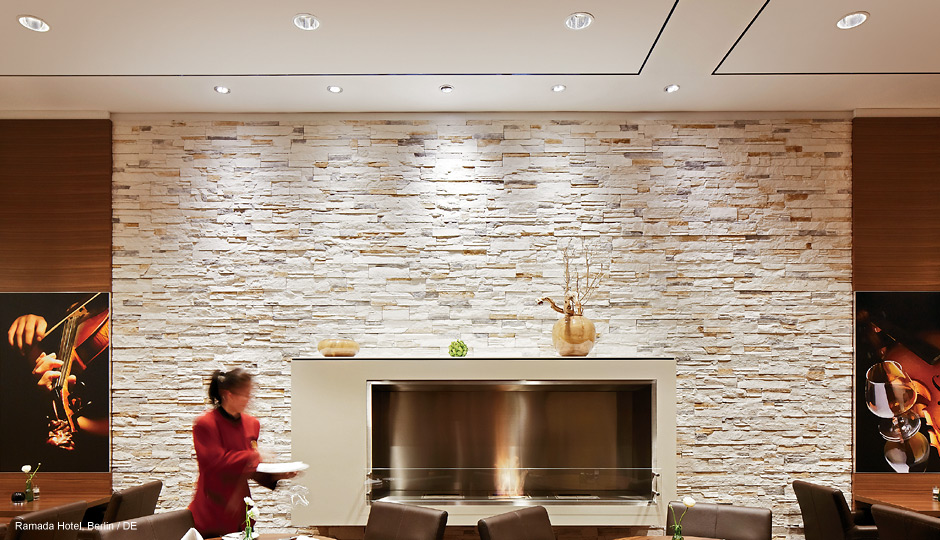

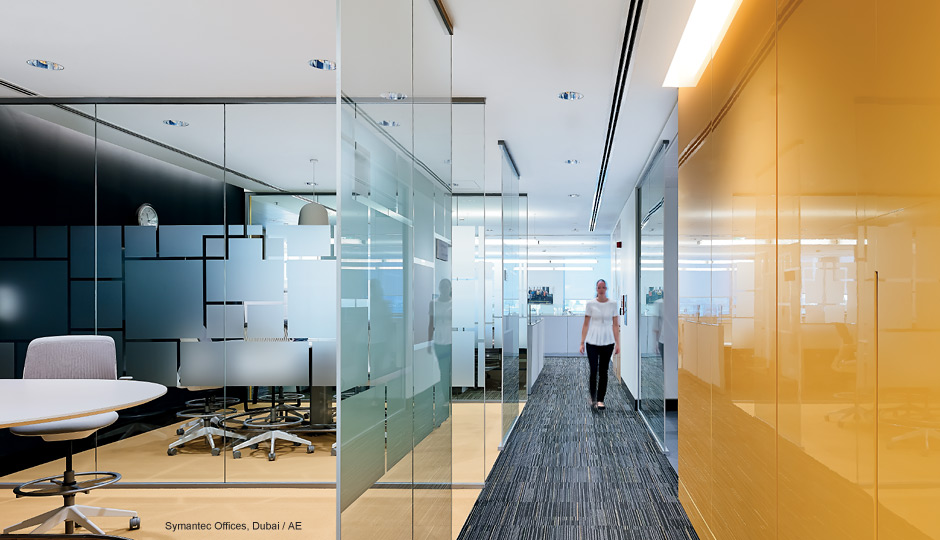

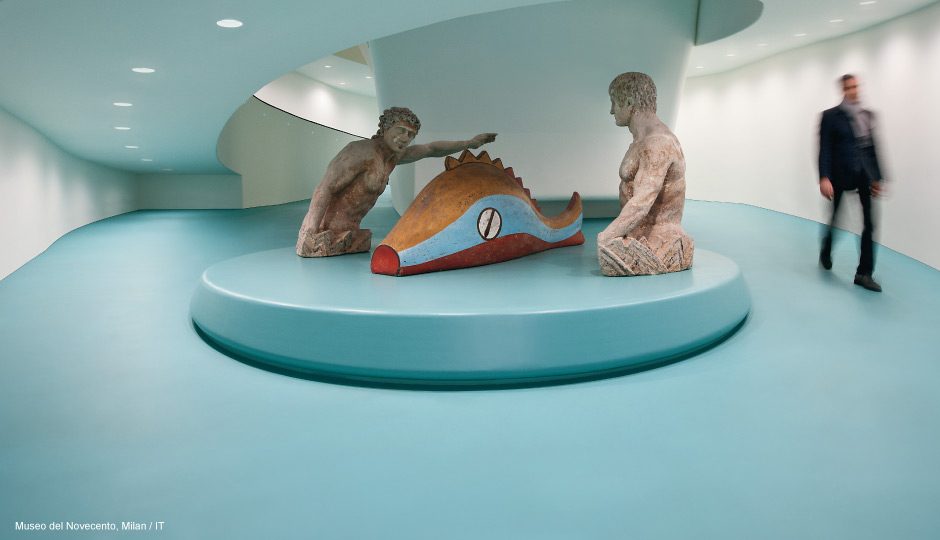

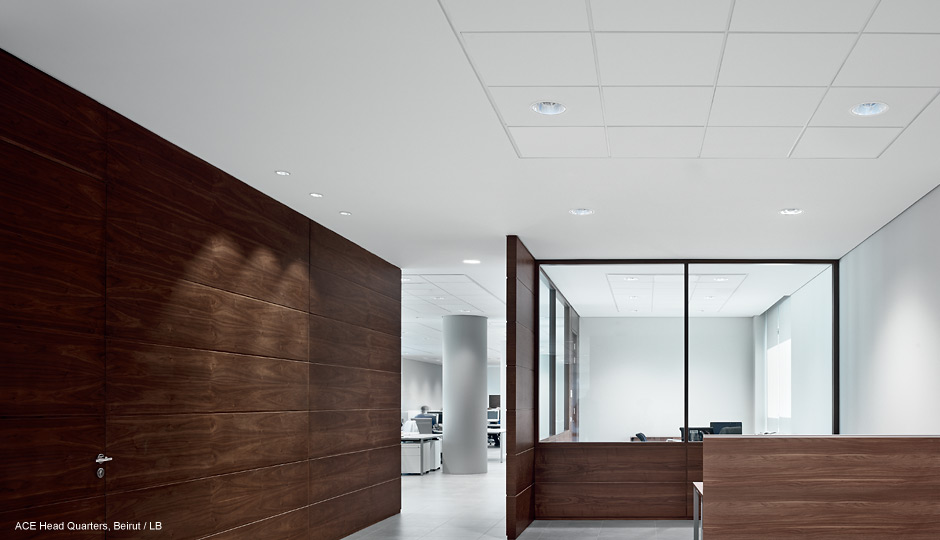

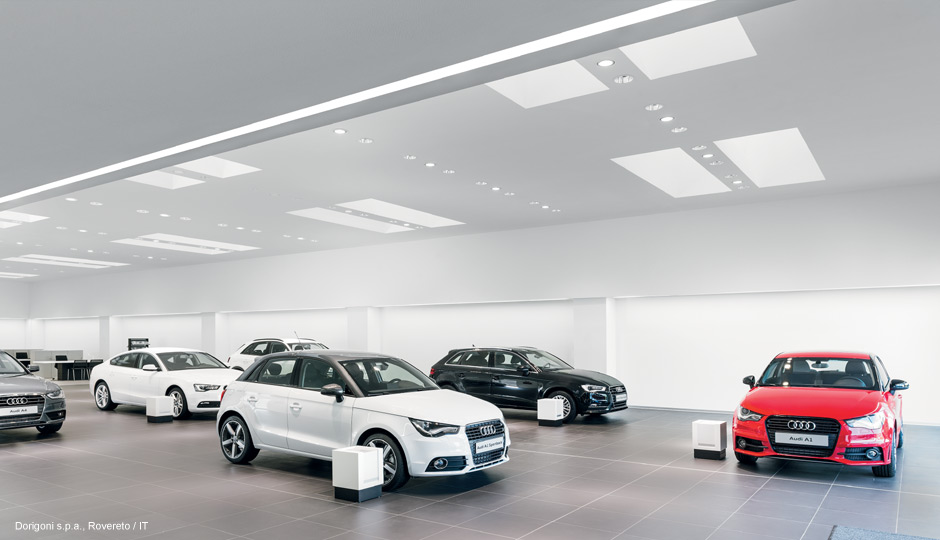

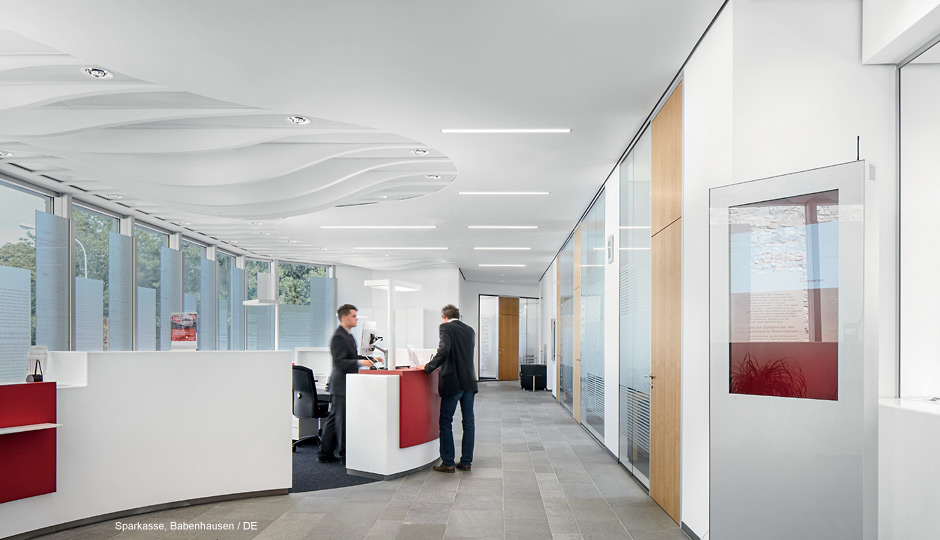

Examples of application versatility
