ONLITE central

Emergency lighting systems with central power supply

ONLITE central

Emergency lighting systems with central power supply

ONLITE CENTRAL eBox

ONLITE CENTRAL CPS

ONLITE central

ONLITE central

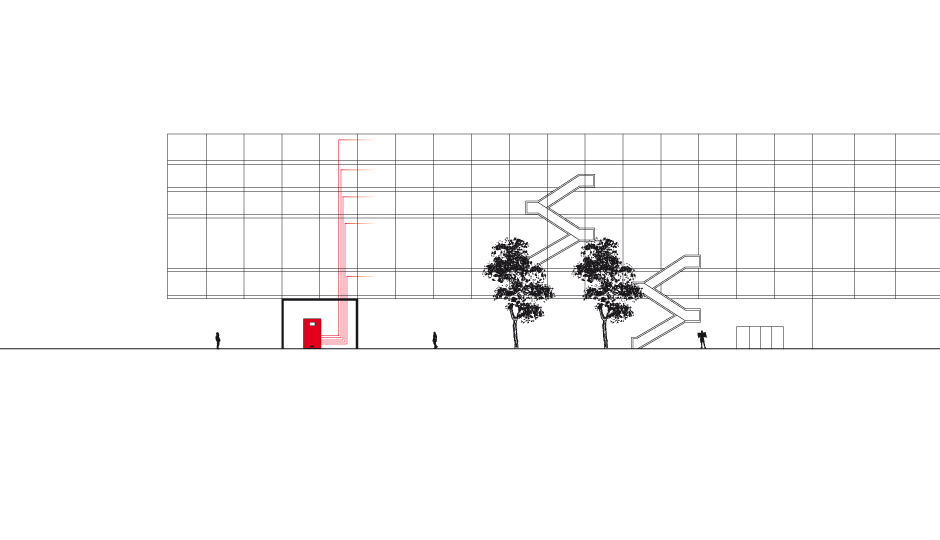

The eBox is a central emergency power supply system with maximum flexibility. It can be expanded as required and is capable of operating up to 600 luminaires. This is made possible by IP20 and IP65-rated sub-distribution boards or a fire-proof sub-distribution board in E60. The built-in DALI memory function ensures compatibility with various DALI systems, enabling separate switching or dimming of each emergency luminaire.
The modular, expandable central battery system
eBox
The TÜV-certified emergency lighting system
eBox
More safety
  • Heartbeat-monitored bus phase detectors

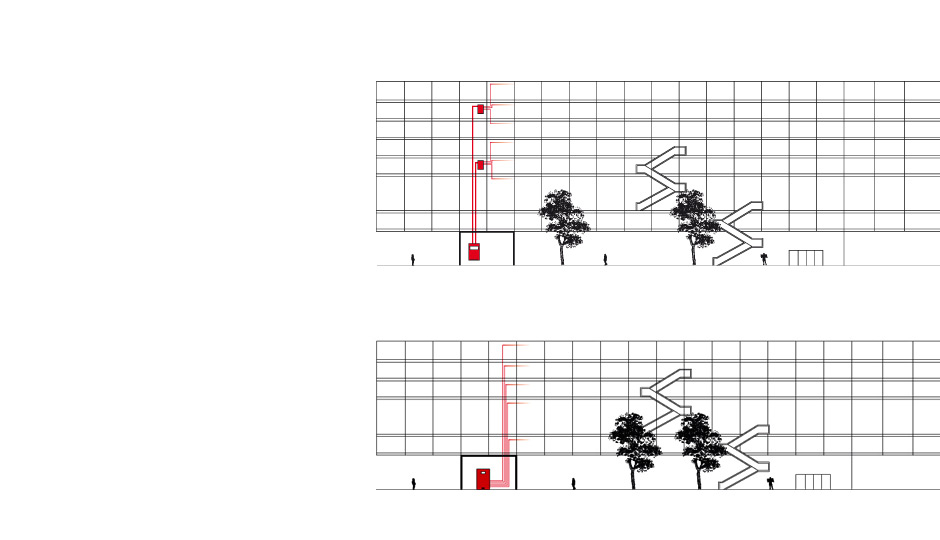

  • Fire loads reduced by as much as 70 % thanks to shorter cable lenghts and sub-distribution boards
  • Individual failure or error notification
  • Current system always displayed via web-browser-based interface
Efficient intelligence
  • Smaller battery capacities due to flexible programming of emergency lighting levels
  • DALI compatibility ensures straightforward, affordable integration into general lighting system
  • Built-in DALI memory function for DALI lighting management without any additional hardware components
  • Each circuit with learning function
Easy installation
  • Communication via Powerline (mains cable) or DALI
  • Not required: fire-proof cabling within a fire compartment

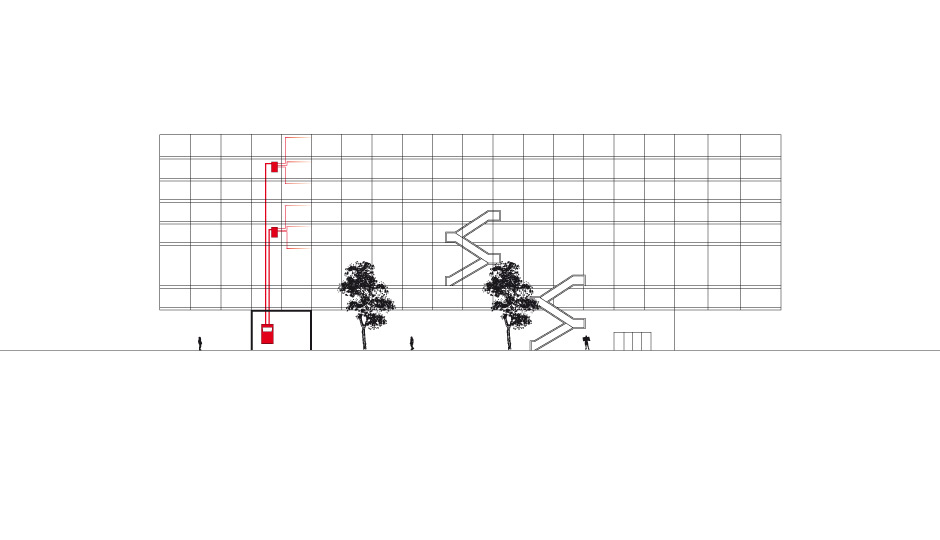

  • 30 % less installation effort because whole system is divided between sub-distribution boards
  • Quick commissioning thanks to wizard-guided menu
Facts & benefits
eBox

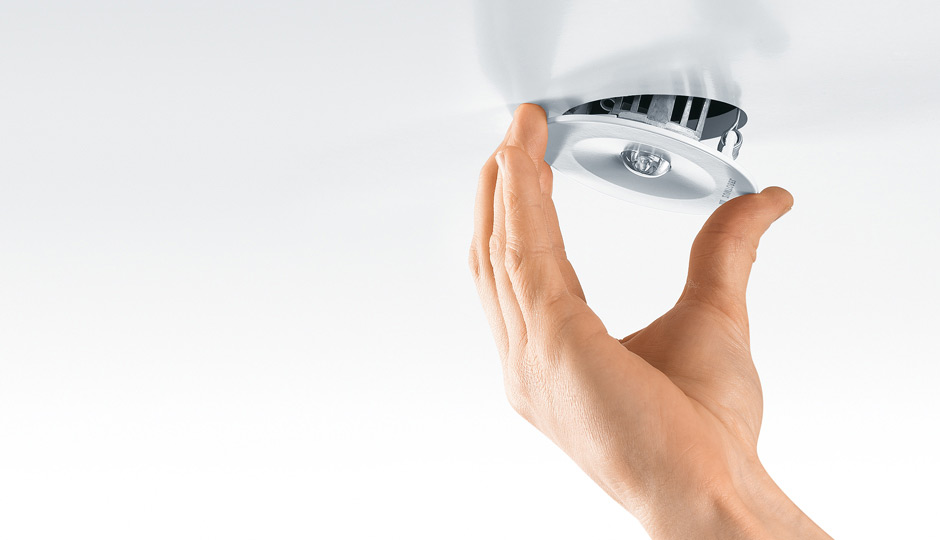

Together, ONLITE central eBox and innovative LED emergency and escape sign luminaires make a great team. Using efficient LED luminaires that provide light distribution which is perfectly matched to emergency lighting needs keeps the installed load to a bare minimum. This means that required battery capacities can be smaller and supply systems can be significantly more compact. Communication between the ONLITE central eBox system and the LED luminaires is based on Powerline, which allows individual control and monitoring of every luminaire. Emergency lighting can be operated completely independently of the general lighting system.
ONLITE central eBox and LED systems
eBox

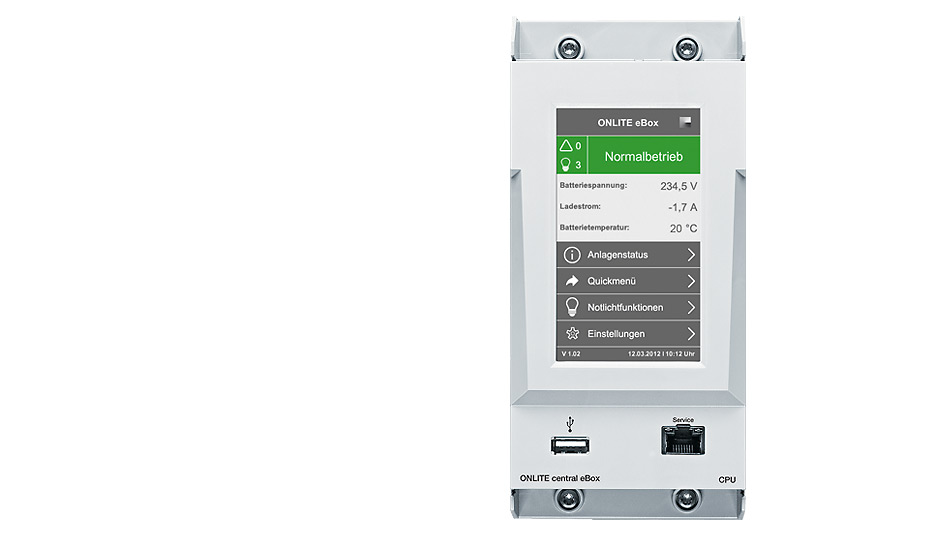

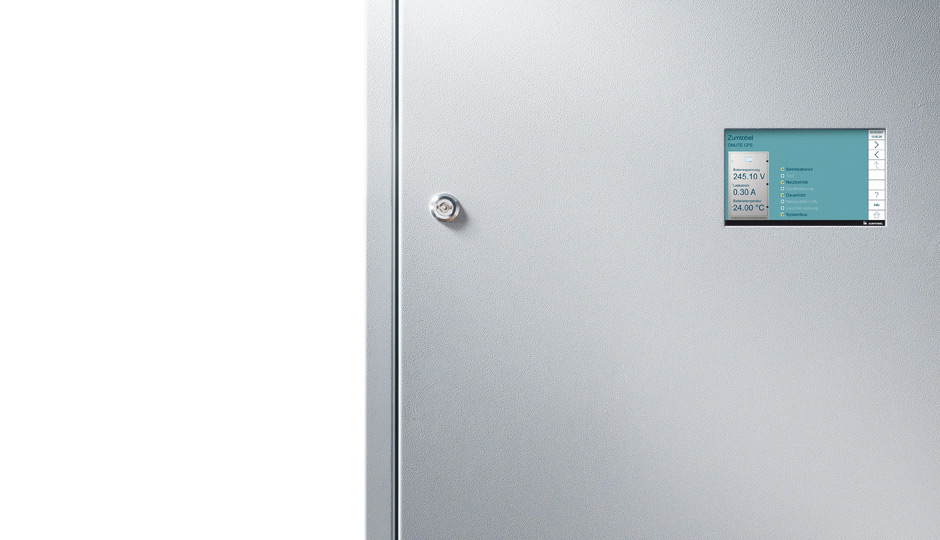

As a central processing unit with a 4.3 inch colour touch display, the ONLITE central eBox monitors and displays the entire emergency lighting system. Initial commissioning is effected quickly and easily via the wizard-guided menu. Other settings can be made just as conveniently, via a p2p connection from a notebook. Without any additional software, just based on a web browser, a clearly laid-out interface is made available that allows operation of up to 100 systems or 1000 luminaires. Data such as the text log book can be uploaded and downloaded easily via a USB interface.
Control, display and networking
eBox
ONLITE central eBox
Supply centre
Facts
LED emergency lighting systems
System centre

ONLITE central

CPS
Customised, networked central battery system according to project specifications
Every central battery system is designed specifically for the respective project on the basis of a modular system. This produces solutions optimised in terms of the cost and functionality of the system. The modular design of ONLITE central CPS guarantees a tailor-made solution for any project and a significantly optimised cost/functionality ratio.
CPS
Tailor-made emergency lighting system
CPS
  • Individual switching mode for each luminaire, even within a single circuit
  • Combined monitoring of circuits and individual luminaires in one system
  • Simple project planning thanks to competent design support and extensive design tools
  • Individual switching mode for each luminaire, even within a single circuit
  • Combined monitoring of circuits and individual luminaires in one system
  • Simple project planning thanks to competent design support and extensive design tools
  • Integration into lighting management with significant technical and economic benefits
  • Project-specific solutions thanks to modular system
  • Full functionality as standard, renders additional software and modules superfluous
Low effort on design




Perfect design freedom




Convenience at every level
Facts & benefits
CPS

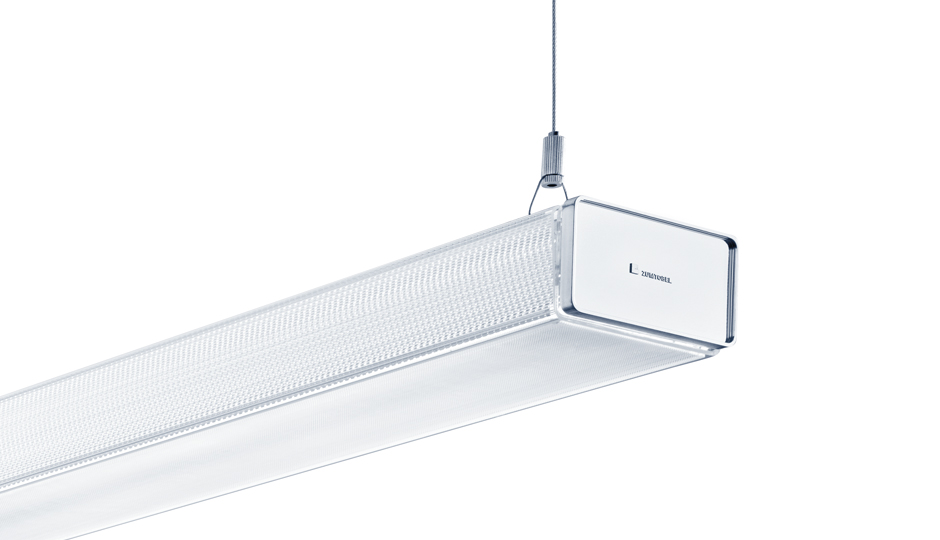

Every DALI standard luminaire can be used as an emergency luminaire that can be individually controlled and monitored. No additional modules need to be fitted to achieve this, and the functionality of the general lighting system is completely preserved. This simplifies project planning, reduces both costs and effort and makes choosing luminaires easy. Delivery times for emergency luminaires are short because they are part of the standard product range.
DALI as a communication standard
CPS

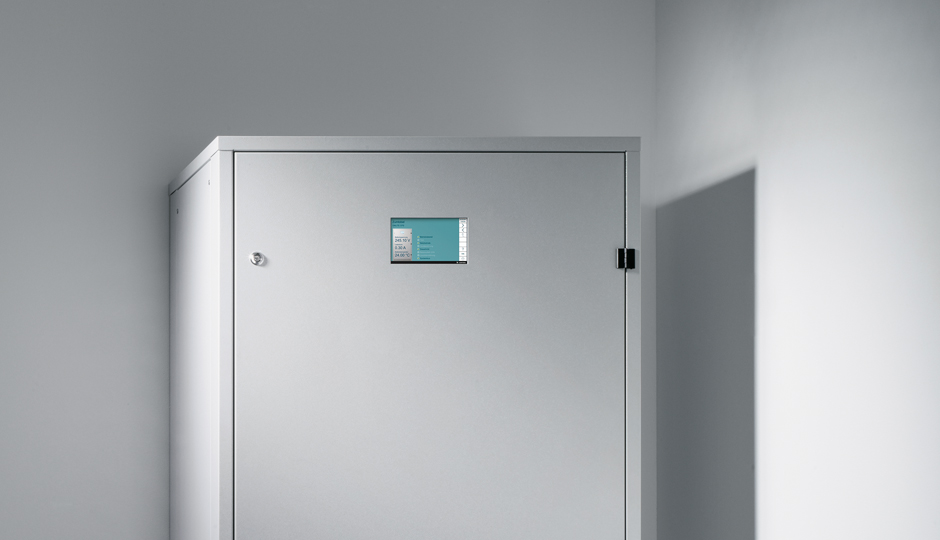

ONLITE central CPS sets new standards in the monitoring and visualisation of emergency lighting systems. The complete installation is displayed on a 7-inch WVGA colour-touch PC in 16:9 format, backlit by LEDs. Touch and control: a maximum of three touches are required to have individual luminaire data and status displays available. All incidents are recorded on a built-in SD card, in the form of a test log book, and kept for at least three years. In addition, every ONLITE central CPS module can be visualised via Ethernet using a web-based browser without the need for any additional software. The system can therefore be remote-controlled from any PC.
Control, visualisation and networking
ONLITE central CPS
Supply centre
Facts
DALI as standard
System centre

ONLITE central
