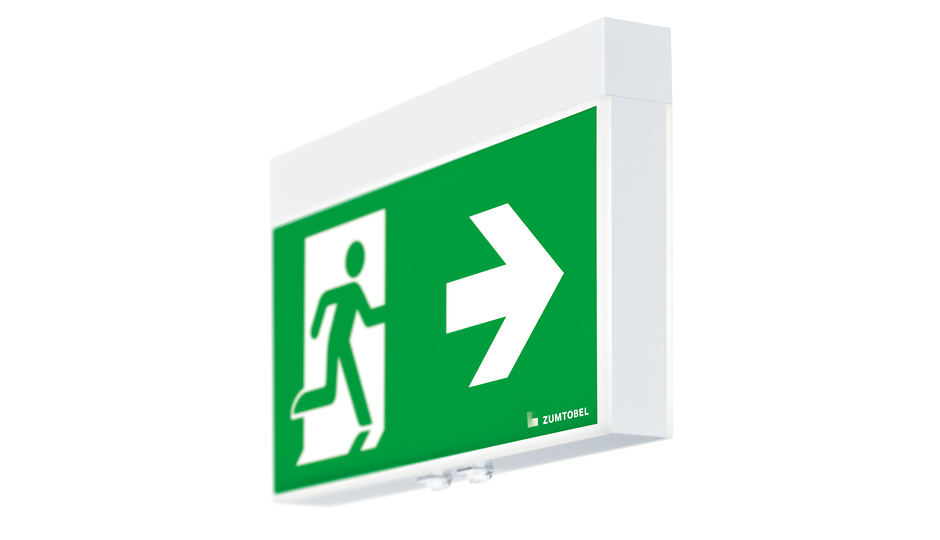

CROSSIGN 110 and 160 P

Emergency lighting

CROSSIGN 110 and 160 P

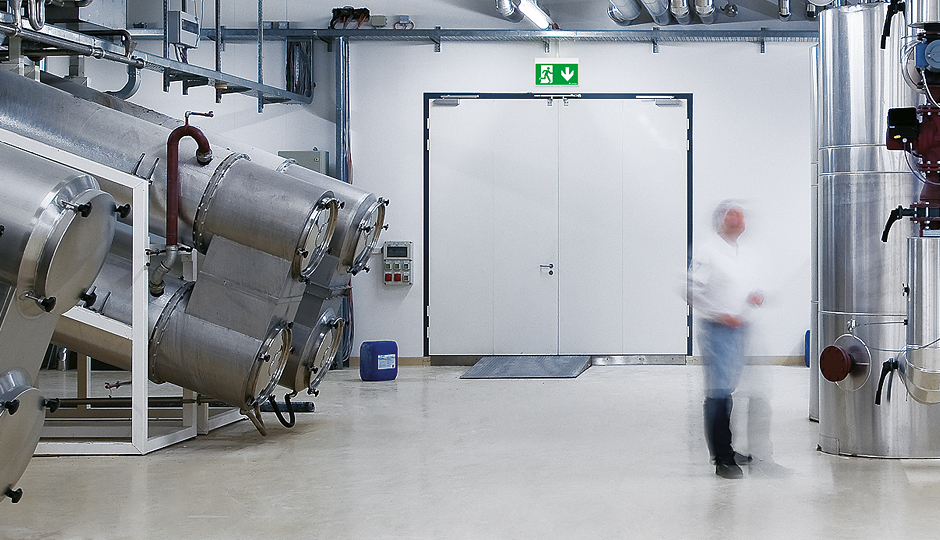

Applications

CROSSIGN is ideal for all kinds of challenging environments typically found in industry. IP 42 and IP 54 versions are resistant to dirt, dust and moisture. With adapters the escape sign luminaire can also be integrated into the TECTON continuous-row lighting system.

CROSSIGN 110 and 160 P

Design

DESIGN | EOOS

CROSSIGN 110 and 160 P

ONLITE is innovative lighting

ERI – Escape Route Illumination
The ERI spot is an energy-efficient LED spot which is combined with a patented lens. This lens bundles the light from 0.5 W to form incredibly powerful lighting cones which rotate easily to adapt to any building situation. Specially developed for the PURESIGN 150 and the CROSSIGN 110 and 160 luminaires, this lens also guides the light for optimum illumination of the escape route. Therefore escape sign and emergency luminaires become one product. In many cases, no other emergency luminaires are needed.

LED string
With just 3 W power uptake, the pictogram is illuminated with perfect uniformity at an average luminance level of 200 cd/m2 (500 cd/m2 for the white range), thanks to special fibre-optic technologies.

LED spot
With a connected load of just 0.5 W,
the spot illuminates up to 6.5 metres
of escape route. Aligned in opposite
directions, they illuminate distances
of up to 13 metres.

ERI lens
The snap-in fitting method means that
the lens can be securely attached to
the luminaire and manually adjusted
in 90° increments.

ERI spot
Two LED spots attached to the
underside of the CROSSIGN 110
and 160 and the PURESIGN 150
escape sign luminaires act as
emergency lighting.

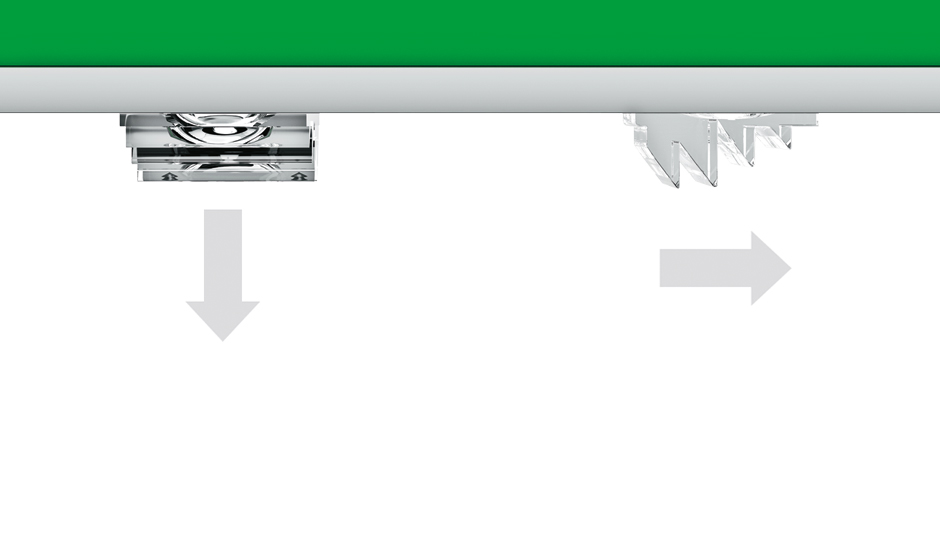

Rotatable ERI spot
Rotatable lens

CROSSIGN 110 and 160 P

Multi-talented for every application

Equipped with the latest LED technology, the CROSSIGN all-rounder steps into a highly efficient future. A power uptake of just 3 W in the standard version and an efficiency of over 100 lm/W reduces the energy consumption of this sustainable luminaire, while the specially developed PMMA lens distributes the light evenly over the entire pictogram. Two rotating ERI lenses at the bottom turn the escape sign luminaire into an emergency luminaire as well.

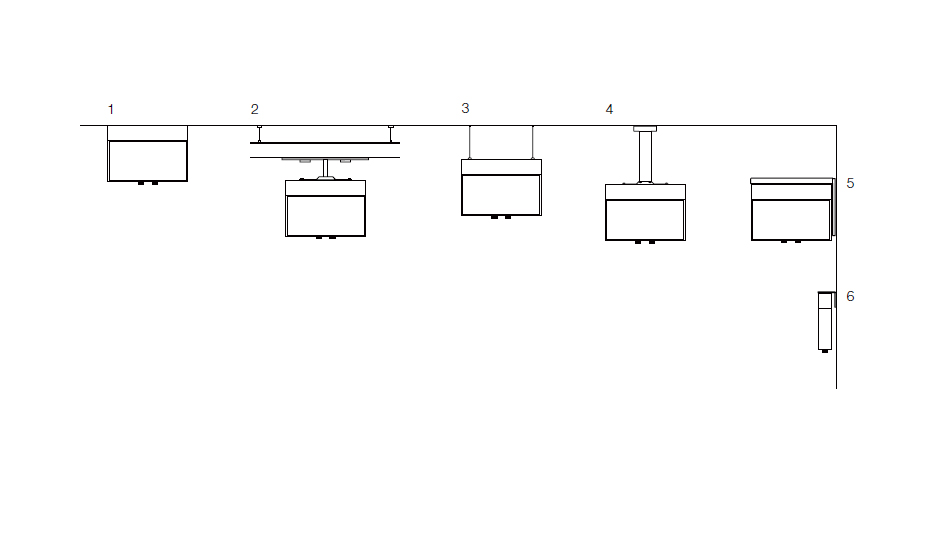

1 Ceiling surface-mounted MSC
2 TECTON continuous-row TEC-GP
3 ASI cord suspension MSC-CORD20
4 Pendant suspension MSC-R05
5 Wall surface-mounted 90° MS90°
6 Wall surface-mounted MSW

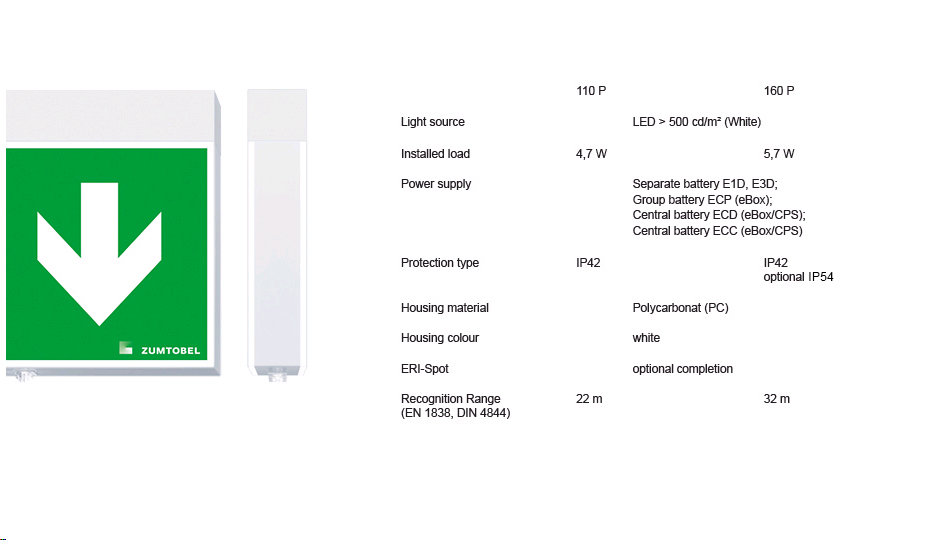

ONLITE CROSSIGN 110/160

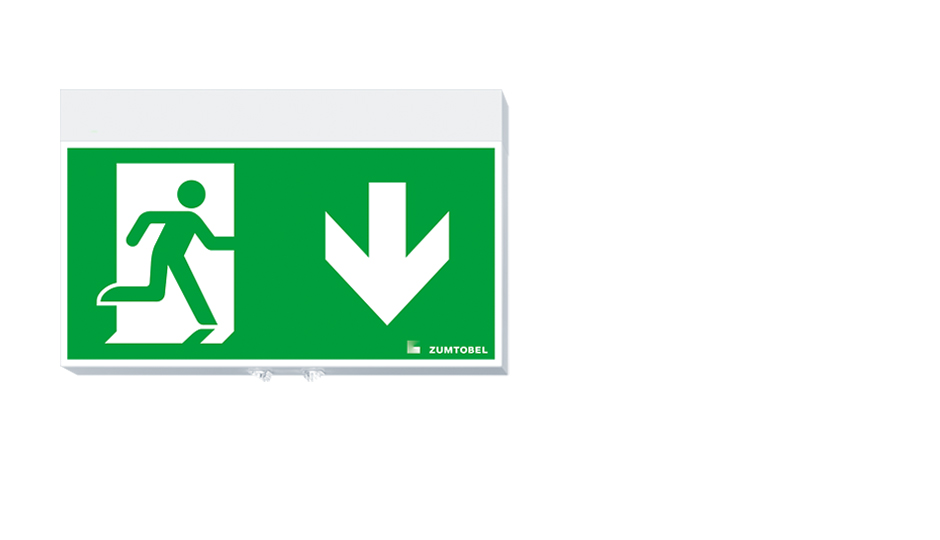

LED technology
Installation options

CROSSIGN 110 and 160 P
