The right light for any retail area
- Maximum LED efficiency
- Flexibility at the highest level
- Individual lighting
- Innovative lighting technology
- Perfect accent lighting
- liteCarve®-reflector technology
- Complete solution based on one system
- Can be used in a number of ways in terms of architecture
- Efficient and energy-saving
- Exzellent lighting technology and colour quality

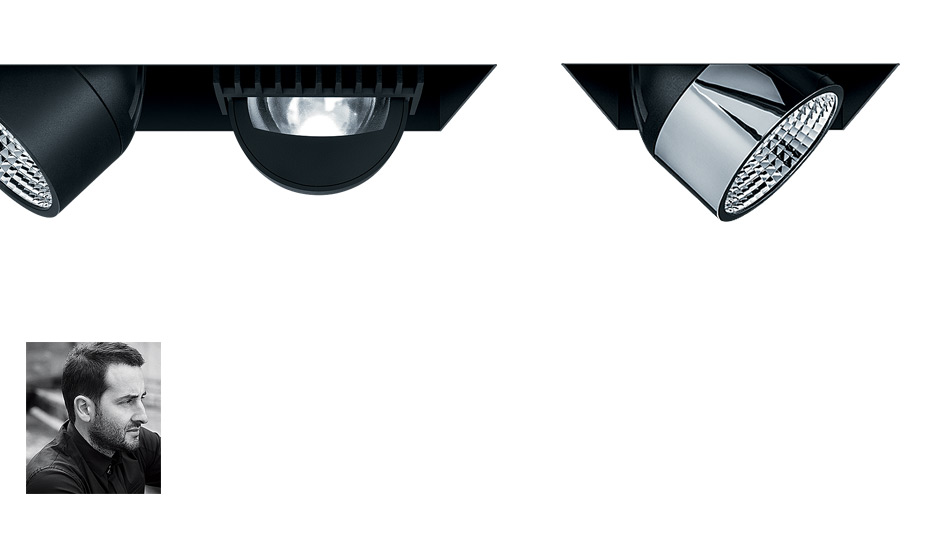

Chris Redfern
Sottsass Associati | design
“The INTRO retail lighting system ensures that customers enjoy a shopping experience of outstanding quality. Due to its unique adjustment options, INTRO can be matched to many different interior designs, providing custom-fit and efficient lighting for retail applications.”

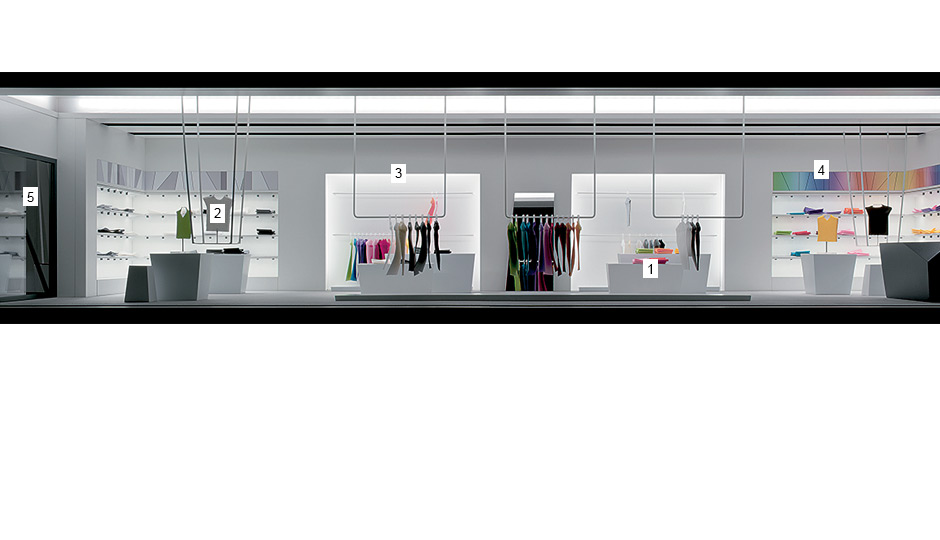

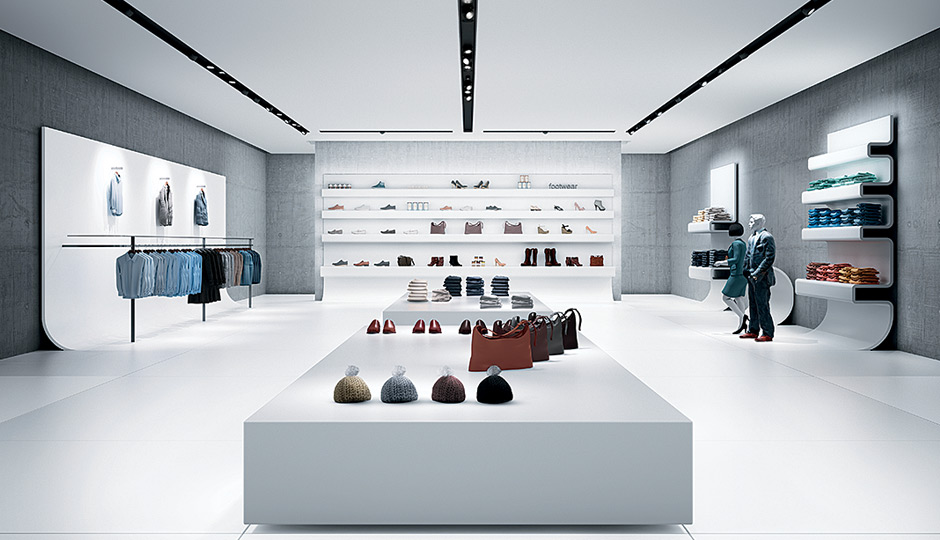

Zone 4
Recesses and shelves with
built-in lighting
Zone 3
Vertical perimeter surfaces
(shelves, displays)
- Complete lighting solution for any shop zone
- Flexible installation
- Versatile and variable design
- Efficiency of up to 100 lm / W
Zone 2
Special bargain displays,
point-of-sale highlights
Zone 1
Garments on hangers and
tables for sales promotion
Zone 5
Shop window
INTRO S/M accent spotlight/
downlight
Zone 4
Recesses and shelves
with built-in lighting
Zone 5
Shop window
INTRO M accent spotlight/
emergency luminaire
INTRO S/M accent spotlight
Zone 3
Vertical perimeter surfaces
(shelves, displays)
Zone 1
Garments on hangers and
tables for sales promotion
INTRO M accent spotlight
Emergency lighting
INTRO M
Accent spotlight and liteCarve®
for vertical surfaces
INTRO M accent spotlight
Vertical lighting
INTRO S accent spotlight
INTRO liteCarve®
for vertical surfaces
Lighting task
General lighting
Zone 2
Special bargain displays,
point-of-sale highlights
Accent lighting
INTRO liteCarve®spotlight
for vertical surfaces
- Modular system with high flexibility
- Size, installation, lighting insert: 2 alternatives each
- Front rings: in 5 different colours
- Customisation: individuell can be individually adjusted
to customer demands
- High degree of architectural variability
The lighting solution can be configured in the online product catalogue under "myINTRO" with just a few clicks.
Configuration example 3
Configuration example 1
INTRO S Q1 WWW-BK
Configuration example 2
black white
Front ring
black white
black white
Frame outside
with frame frameless
Inner frame
Installation
Size
INTRO S
Lighting head: Ø 70 mm
Lighting insert
INTRO M
Lighting head: Ø 115 mm
black white chrome matt silver copper
Just like the module frames, the INTRO recessed channel has a modular design and predefined mounting points for the individual lighting inserts. The appropriate length is the sum of light inserts to be integrated. The power input can be up to 200 W per running metre.
For more information, please refer to our
product brochure.

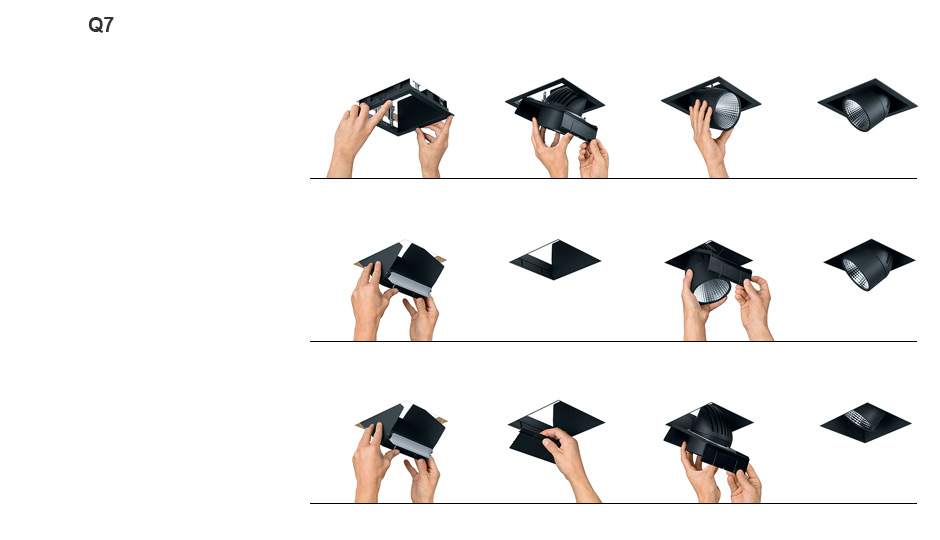

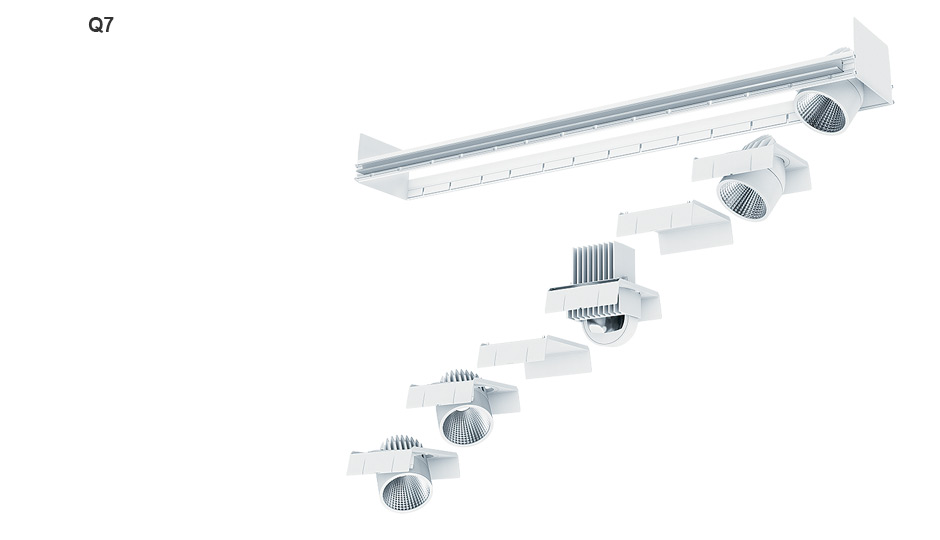

INTRO Q7 channel | 7 modules
Connect luminaire to electrical power supply,
fit into recess and adjust.
Connect luminaire to power
and fit into recess.
Plaster frame flush
with ceiling.
Install frame without any tools.
Connect luminaire to electrical power supply,
fit into recess and adjust.
Install frame and plaster it flush with ceiling.
Frameless with accent spotlight
Frameless with offset frame and accent spotlight
Adjust luminaire.
Install frame.
With frame and accent spotlight
When an installation frame or recessed channel is used during installation, the lighting inserts are simply snapped into place. Luminaire units can be de-installed and re-installed at a later date, without the use of any tools. Handy accessories such as butt joint connectors or spacers ensure that the recessed channel can be installed reliably. If the luminaire is to be invisible, an offset frame allows for recessed installation in the ceiling.

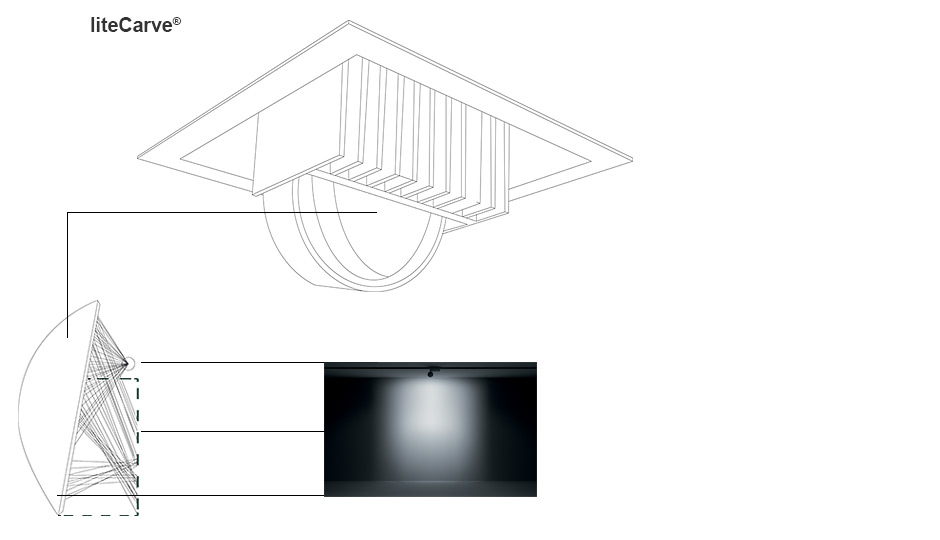

INTRO liteCarve® light distribution
liteCarve
® reflector technology (patent pending) developed by Zumtobel creates entirely new lighting characteristics:
- uniform and efficient lighting of displays,
large-format posters, recesses and wall areas
- Extremely precise and well-balanced rectangular
light distribution
- Reflector directs the light, 100% indirectly, onto
the vertical surfaces in a targeted manner

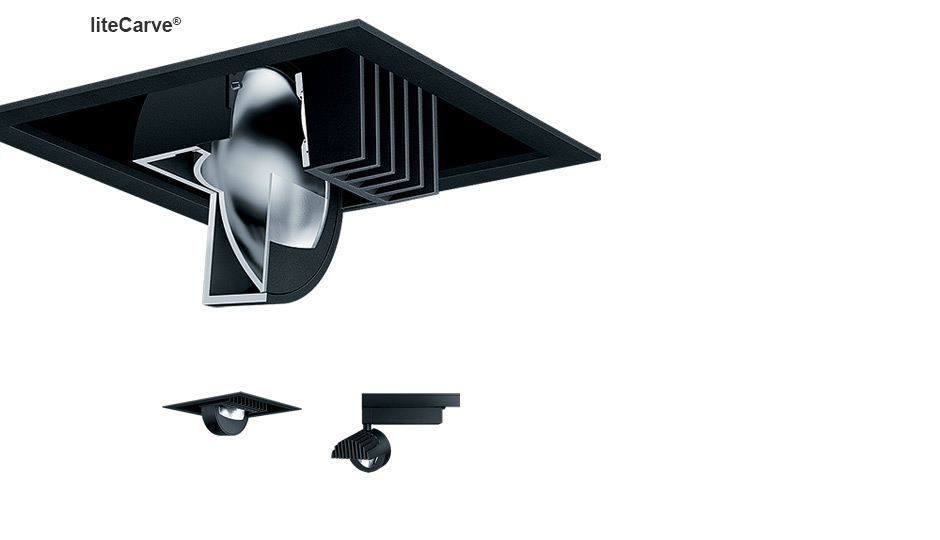

INTRO liteCarve®
Size: M
Lighting head: Ø 125 mm
Width of module installed: 180 mm
System output: LED 53 W
Colour temperatures and colour rendering levels:
3000 K: Ra 80, Ra 90, 4000 K: Ra 80, Ra 90
Luminous flux of luminaires: 2100 lm bis 2800 lm
Luminaire efficiency: up to 53 lm/W
liteCarve® reflector technologie
- Spotlight for vertical surfaces
- precise and well-balanced rectangular light distribution
- Uniform and efficient illumination of a variety of areas
- Extremely high design precision
- Saving energy: 2 spots less required

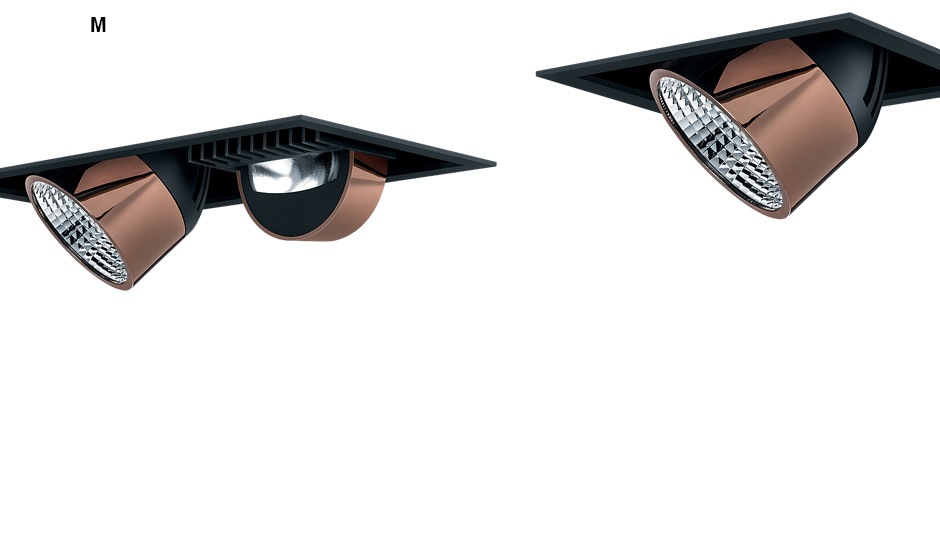

INTRO M Q1 | 29 W accent spotlight | copper front ring
- Perfect accent lighting
- Multifunctional lighting head:
Can be rotated/pivoted through 360°
- Individually adjustable
- Energy-efficient
- High output
INTRO M
Size: M
Lighting head: Ø 115 mm
Module width: 180 mm
System output:
LED 29 W und 36 W
Colour rendering levels and
colour temperatures:
Ra 80 (3000 K, 4000 K)
Ra 90 (3000 K, 4000 K)
Luminoux flux of luminaires:
bis zu 3500 lm
Luminaire efficiency:
up to 97 lm/W

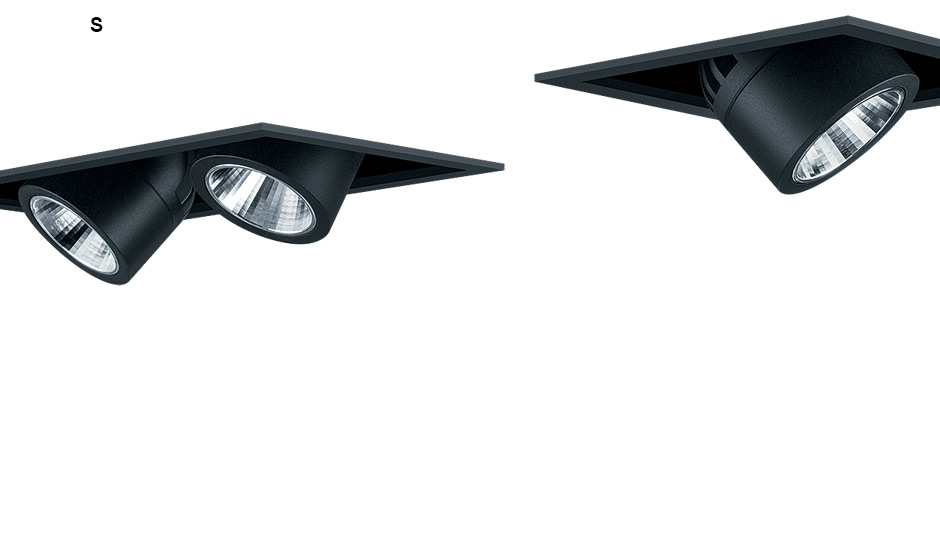

INTRO S Q1 and Q2 | accent spotlight 19 W
- Miniaturisation
- Blends perfectly into any interior
- LED accent spotlight for maximum effect
- Rotating / pivoting LED lighting head
- Excellent colour rendering
- Luminous flux levels of luminaire: up to 1200 lumens
INTRO S
Size: S
Lighting head: Ø 70 mm
Module width: 130 mm
System output: LED 19 W
Colour rendering levels and
colour temperatures:
Ra 80 (3000 K, 4000 K)
Ra 90 (3000 K, 4000 K)
Luminous flux of luminaires:
up to 1200 lm
Luminaire efficiency:
up to 63 lm/W

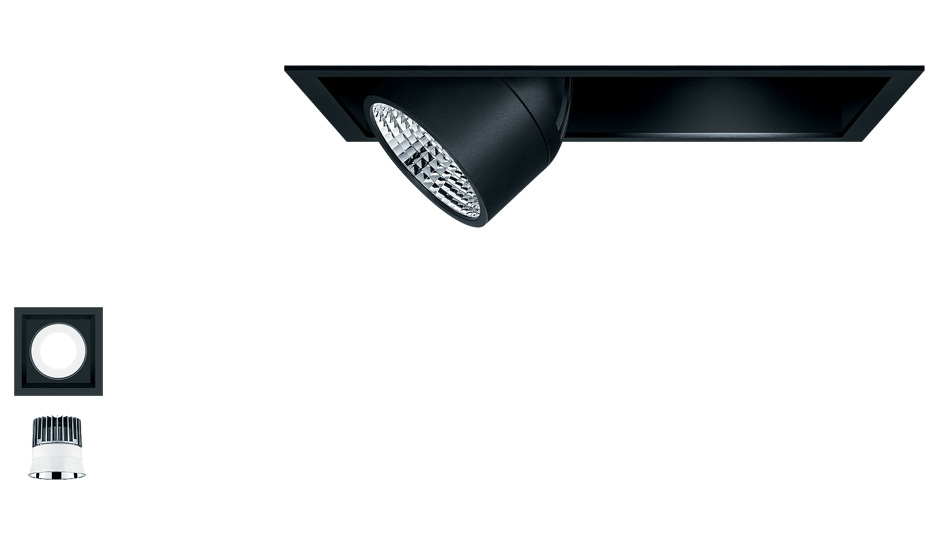

The modular INTRO LED lighting system uses the qualities of the tried-and-tested PANOS infinity downlight. Combined with INTRO S or INTRO M LED accent spotlights, all modules are thus at hand that are required for a shop and retail lighting solution in a consistent design. The PANOS infinity range provides an appropriate component for every situation: using the appropriate module, the frameless models with a diameter of 100 mm and 150 mm can be integrated “inconspicuously” into the mounting frame and also into the recessed channel.
INTRO M Q2 | 36 W accent spotlight and 23 W PANOS infinity 150 mm
INTRO PANOS infinity
Sizes
INTRO S: PANOS infinity 100 mm, frameless
INTRO M: PANOS infinity 150 mm, frameless
Colour temperatures
100 mm: 2700 K, 3000 K, 4000 K
150 mm: 3000 K, 4000 K
Colour rendering: Ra > 90
Luminous flux of luminaire
100 mm: 700 lm, 1600 lm
150 mm: 1000 lm, 1800 lm
zumtobel.com/panosinfinity
INTRO RESCLITE
Size: INTRO M
Module width: 180 mm
System output
LED ≤ 5 W (< 1,5 W in stand-by mode)
Colour temperatures: 4000 K
zumtobel.com/resclite
As part of the INTRO M modular system, the compact RESCLITE antipanic emergency luminaire demonstrates its reliability in the event of a failure of the power supply system. Due to wide-angle, rotationally symmetrical light distribution, the emergency LED luminaire illuminates large areas uniformly with 0.5 lx, according to the EN 1838 standard. This means that one single RESCLITE luminaire is sufficient to provide orientation in an area of 170 m2 and make escape routes or obstacles visible.

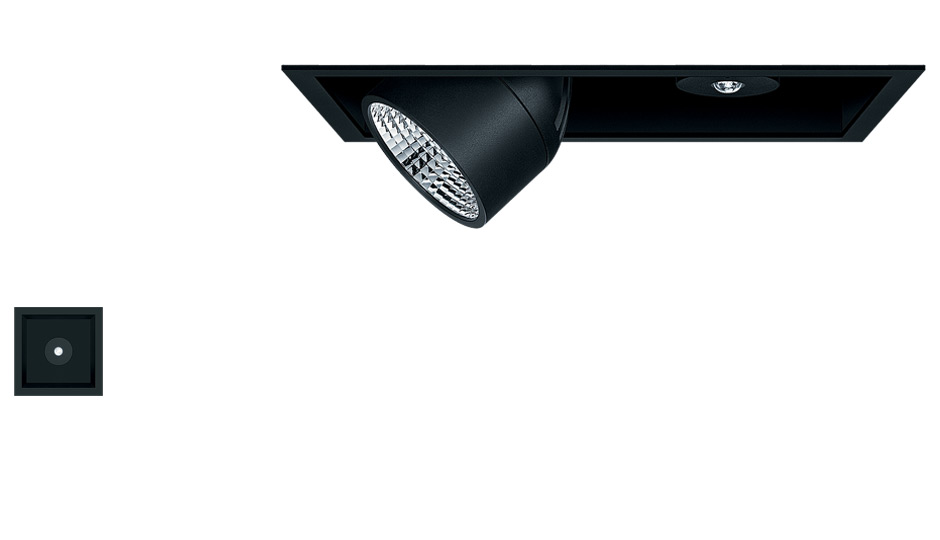

INTRO M Q2 | 36 W accent spotlight and 5 W RESCLITE

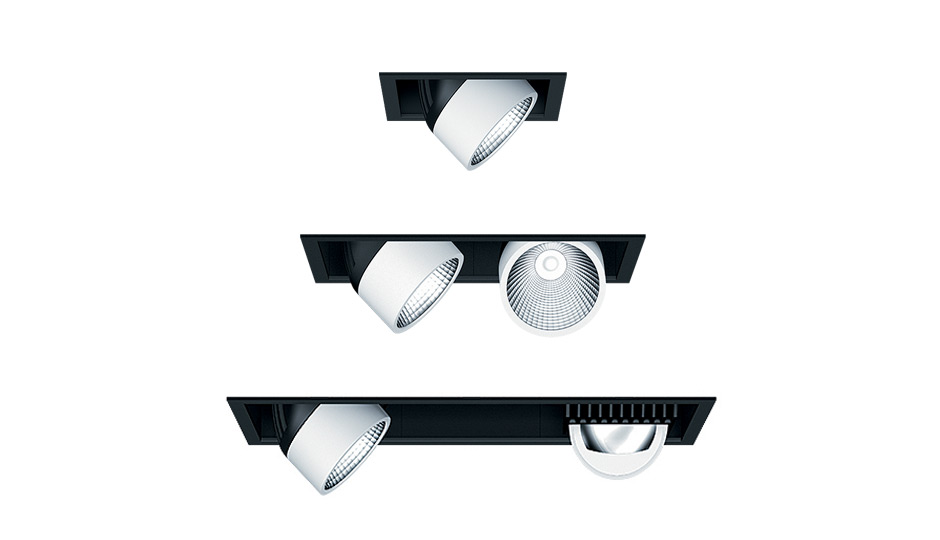

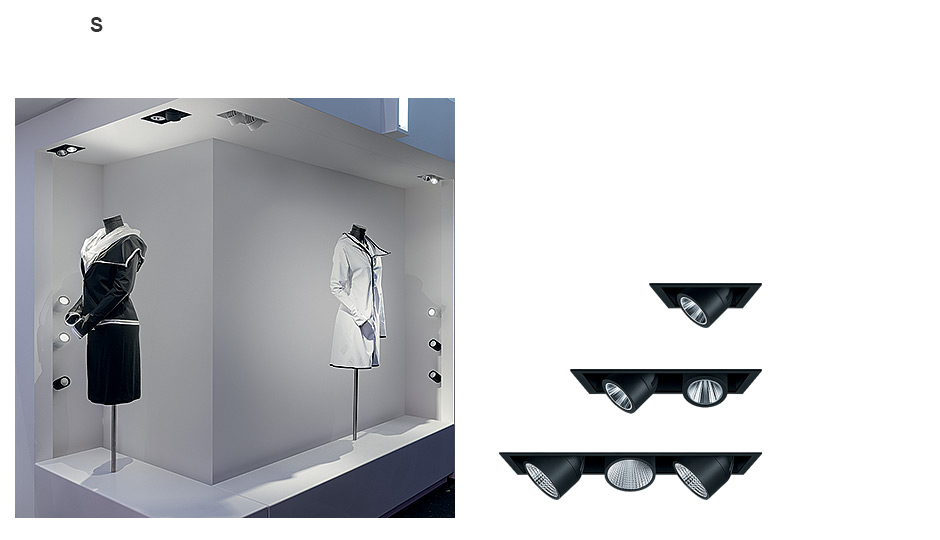

INTRO S
LED accent spotlight / PANOS infinity downlight / LED accent spotlight, lighting heads ø 70 mm,
white with black front ring
INTRO S
LED accent spotlight: lighting head ø 70 mm, white with black front ring
INTRO S
LED accent spots, lighting heads ø 70 mm, white with black front ring

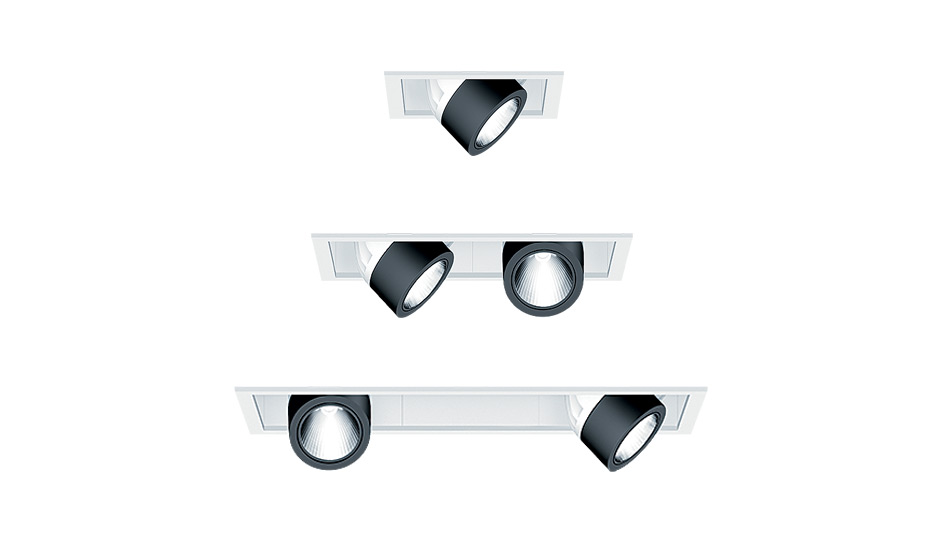

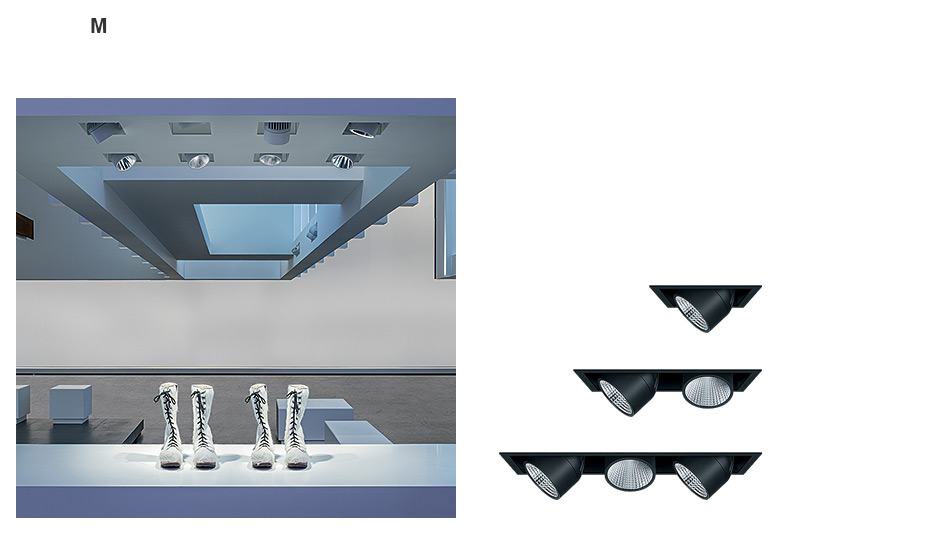

INTRO M
LED accent spotlights with lumen packages of up to 3500 lm, lighting heads ø 115 mm,
black with white front ring
INTRO M
LED accent spotlights with lumen packages of up to 3500 lm, lighting heads ø 115 mm,
black with white front ring
INTRO M
LED accent spotlight / PANOS infinity downlight / liteCarve® spotlight for vertical surfaces,
lighting heads ø 115 mm, black with white front ring
