TECTON

• The world’s first continuous-row lighting system to have an 11-pole current conducting section built into the trunking

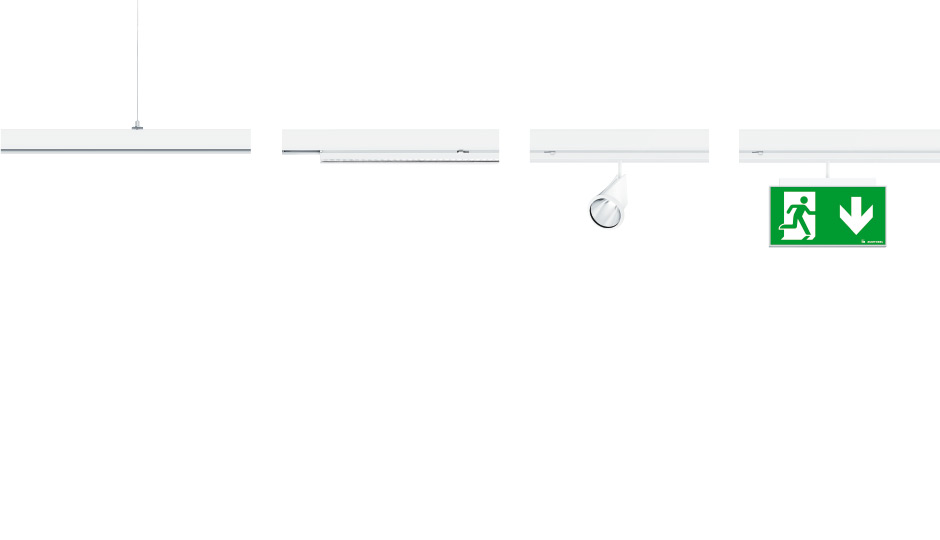

• All functions such as power supply, lighting control or connection to the emergency lighting system are completely integrated
• The luminaires can be positioned flexibly, and the system can be adjusted to structural changes at any time

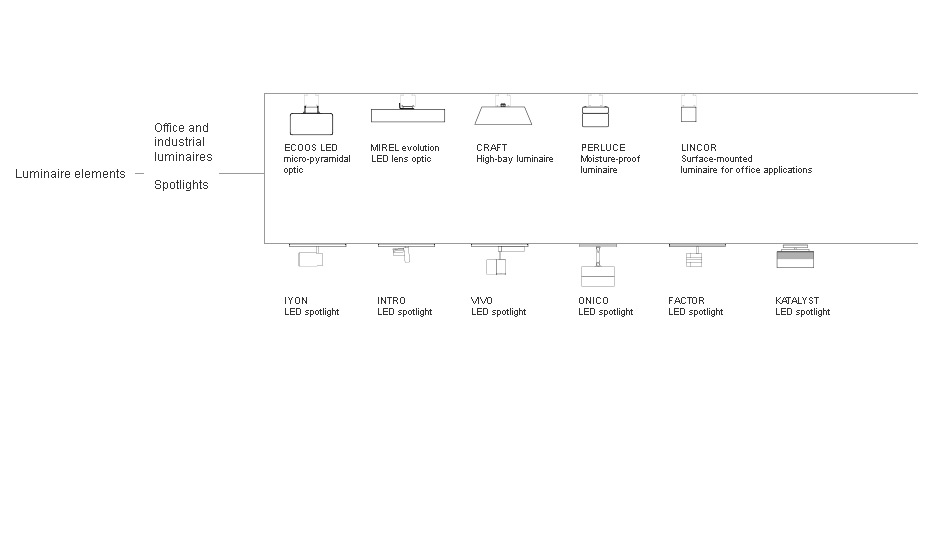

• TECTON trunking as the functional basis, only the various luminaire elements, light sources or optics are replaced or added, if required

4 poles for two independent emergency lighting circuits
(4 x 1.5 mm²)

Optional cable duct

Cable duct

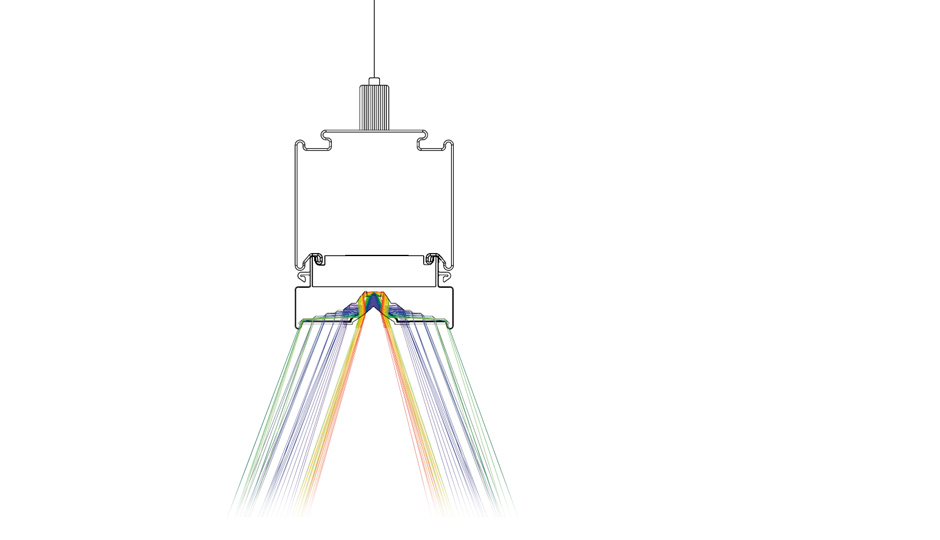

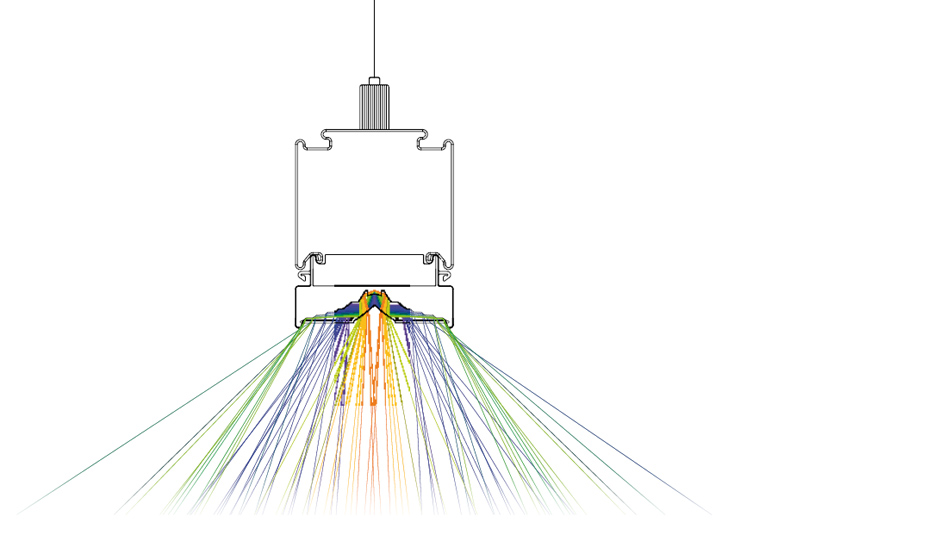

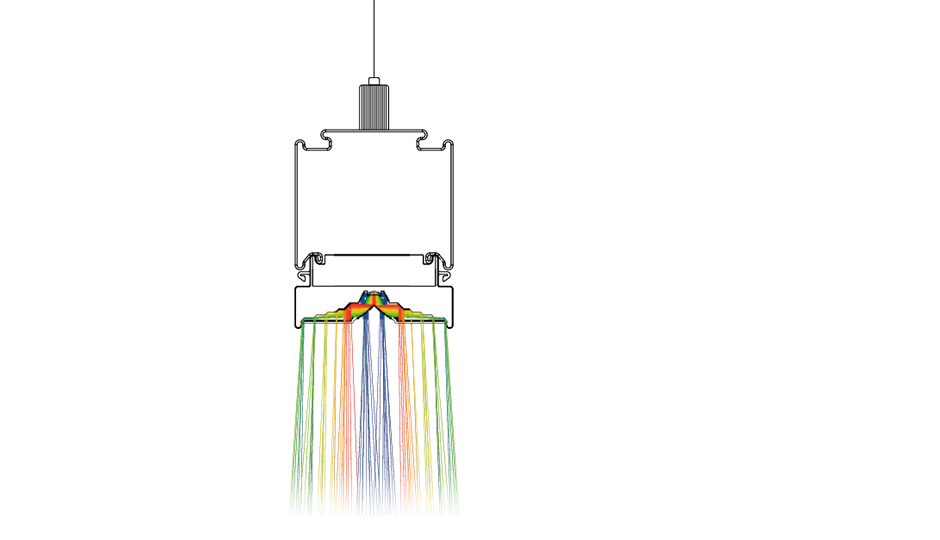

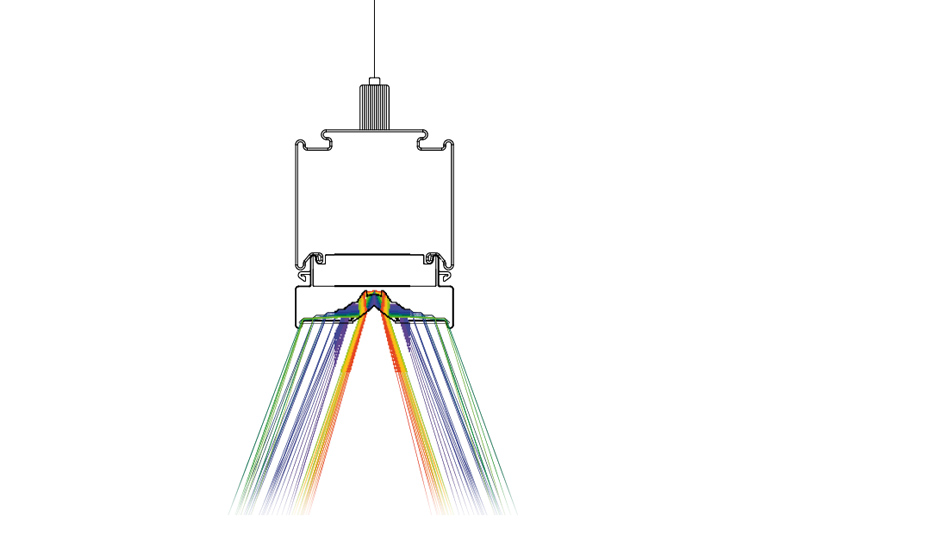

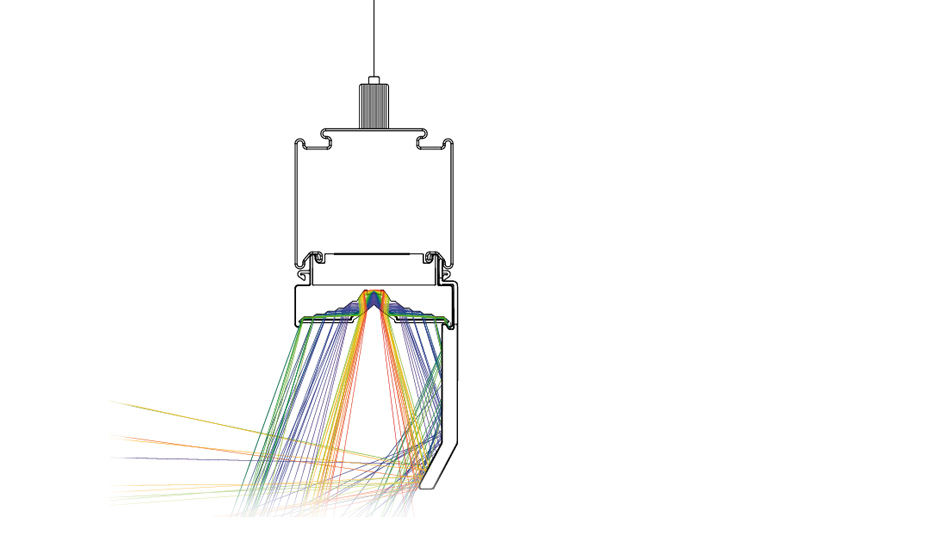

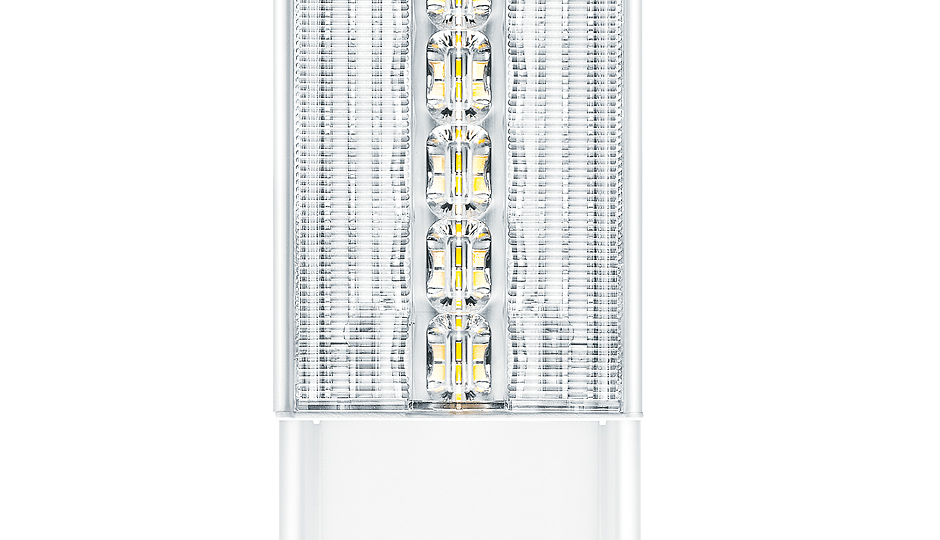

• Split-lens technology

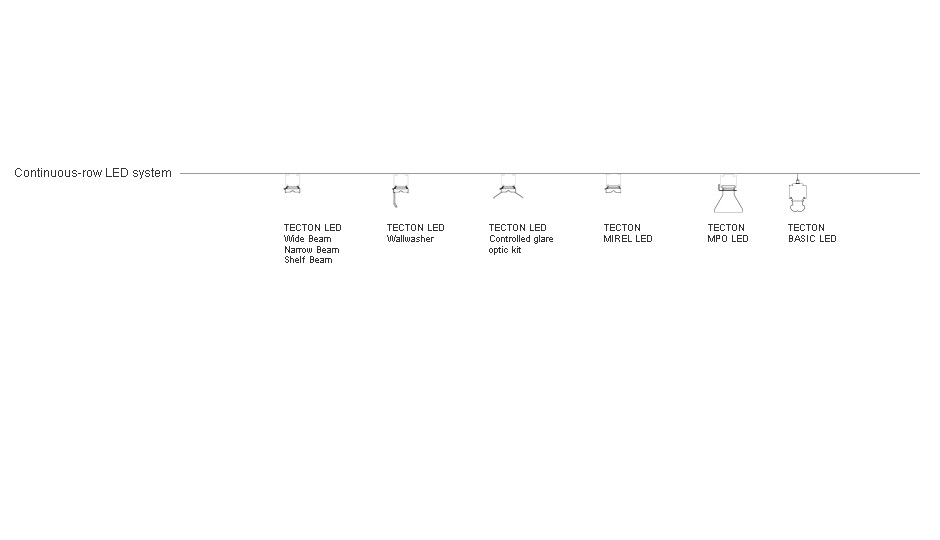

• Consistent continuous-row system, without any visual interruption or different reflectors

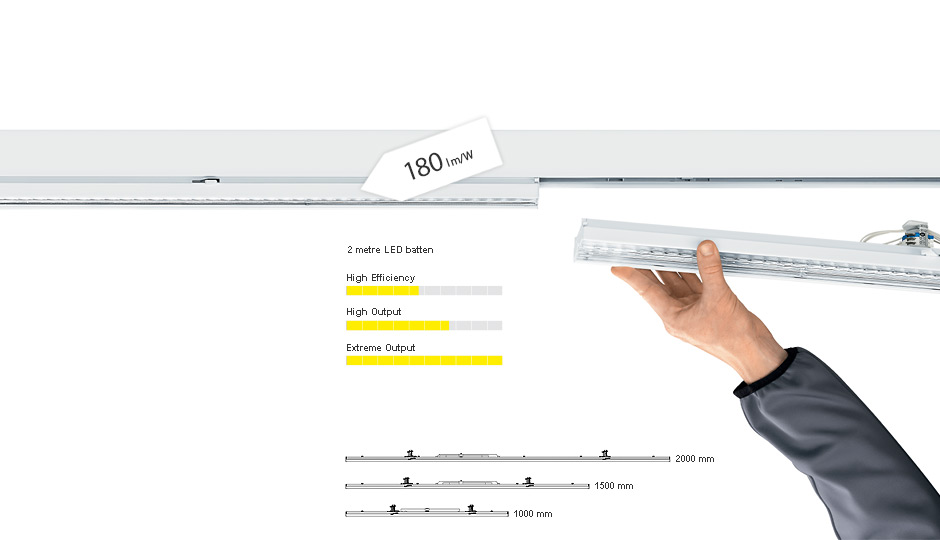

• LED system is 100% compatible with the entire TECTON product range – even T16 and T26 luminaires already in place can be replaced with a new continuous-row LED system easily and without any tools
• Luminaire efficiency of up to 180 lumens per watt
• Colour rendering index of Ra 80
• Service life: after 50,000 hours of operation, as much as 90 percent of the initial luminous flux are still available
• IP50 for LED and optic as standard

• Up to 40 % shorter installation times

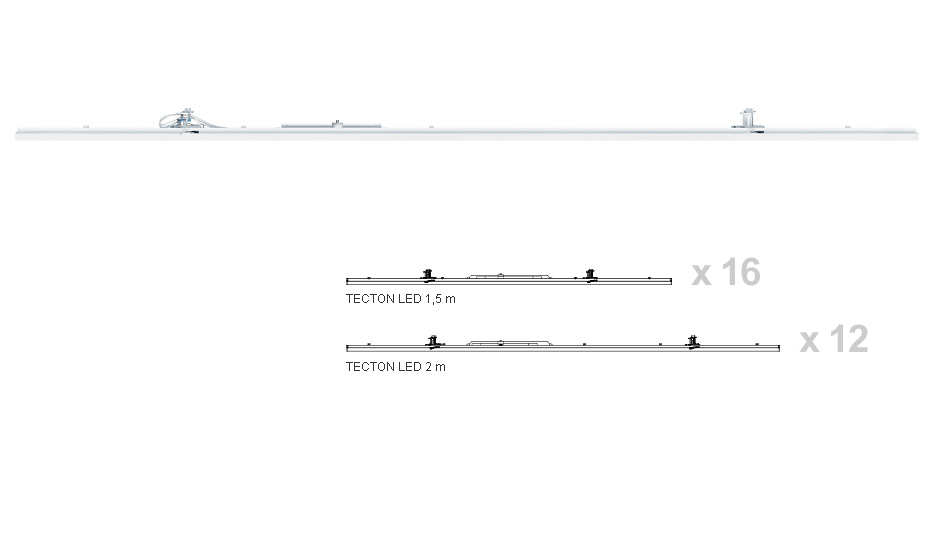

• 25 % fewer individual luminaires

• Less individual packaging and fewer parts at the installation site

• Luminous intensity levels of up to 16 000 lm

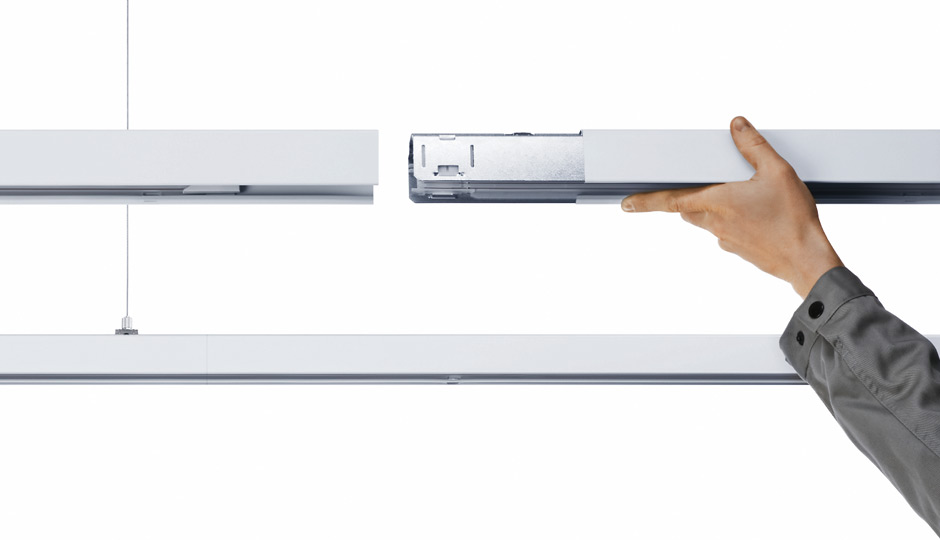

• Lightweight and perfectly fit to be mounted
  by one person

• Reflector CG (Controlled Glare) reduces glare to UGR index < 19
• Meets the requirements with respect to standard-compliant glare control for applications such as supermarket checkout areas

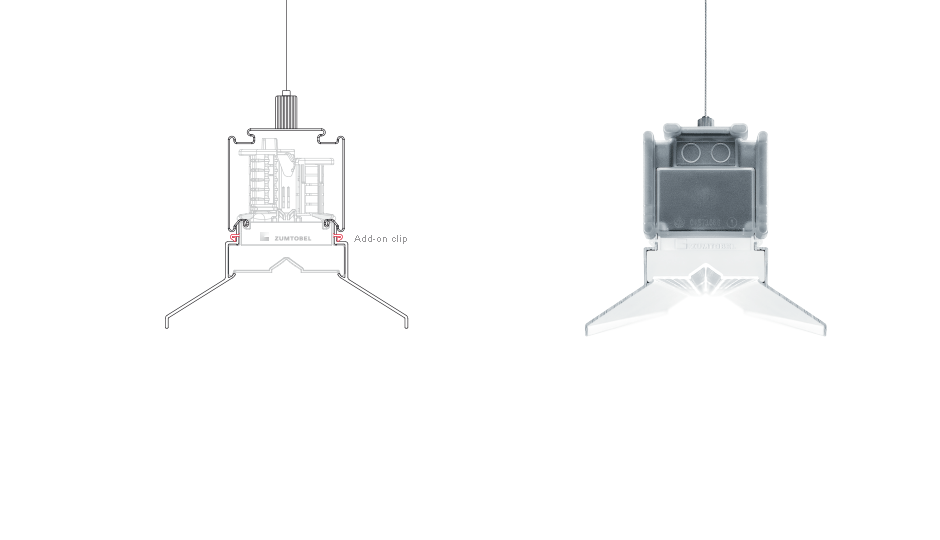

• Assembly via add-on clip

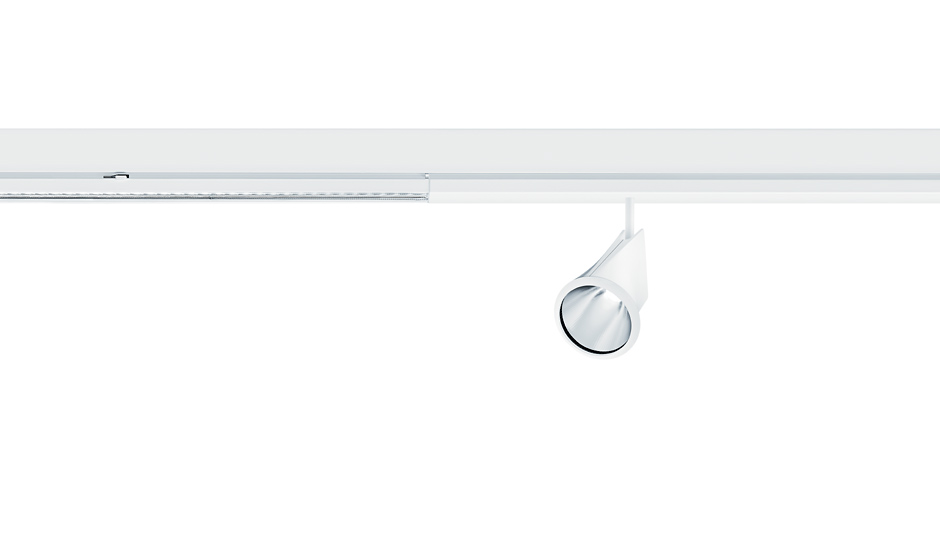

• Mounting clip provides plenty of design scope
• Reflectors designed according to the customer's needs will change the lighting effect and the geometry of a TECTON LED luminaire – to create an individual stylistic idiom
• Advantage on site: owing to the add-on clip, extra attachments can be mounted quickly and comfortably

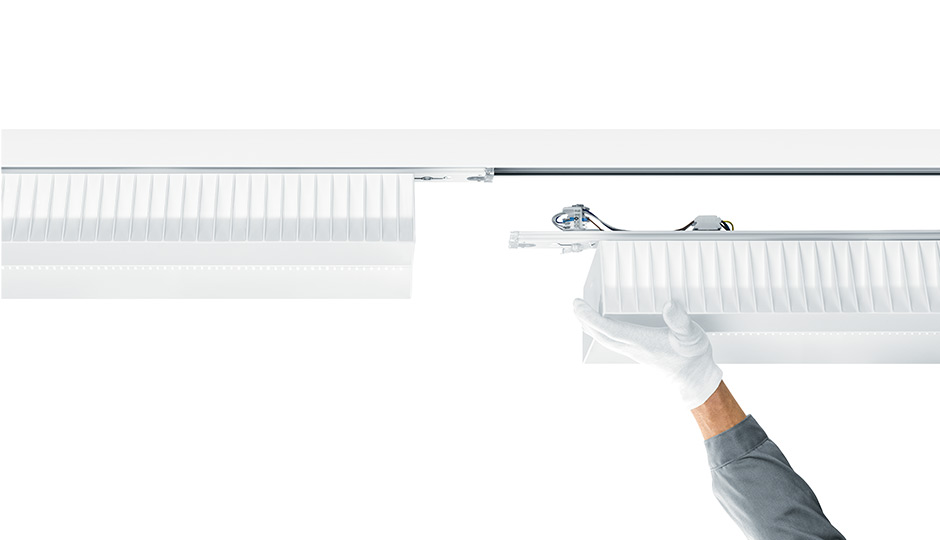

• Ideal for education and office applications
  (UGR < 19 and L65 < 3000 cd/m²)
• Same slim design as the TECTON C LED continuous-row luminaire
• As part of the TECTON product group, as flexible and comfortable to install as usual

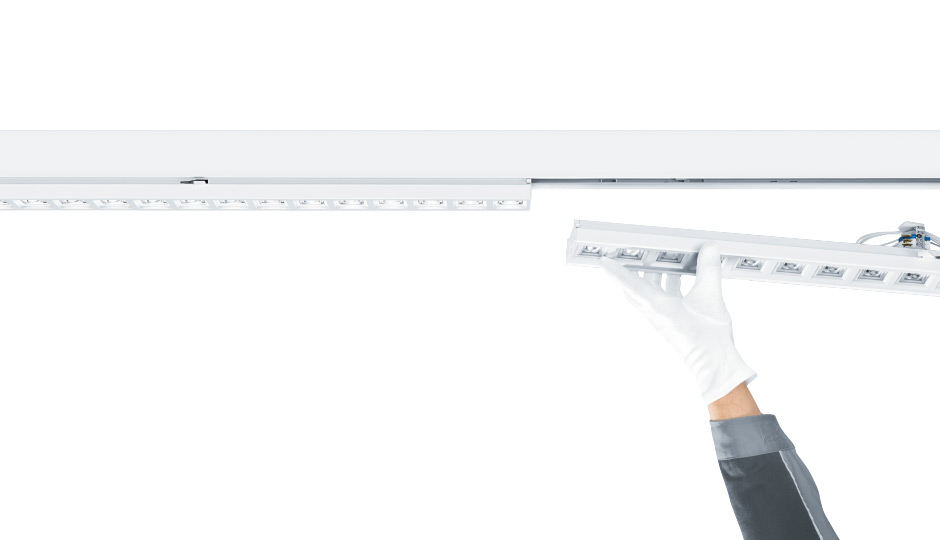

TECTON MIREL LED brings together the best of two worlds. Whereas the slim continuous row stands out above all by its eno rmous flexibility, the MIREL evolution office luminaire guarantees high visual comfort, even with demanding visual tasks. The continuous-row lighting system that is rounded off in this way satisfies a wide variety of requirements in a uniform design.

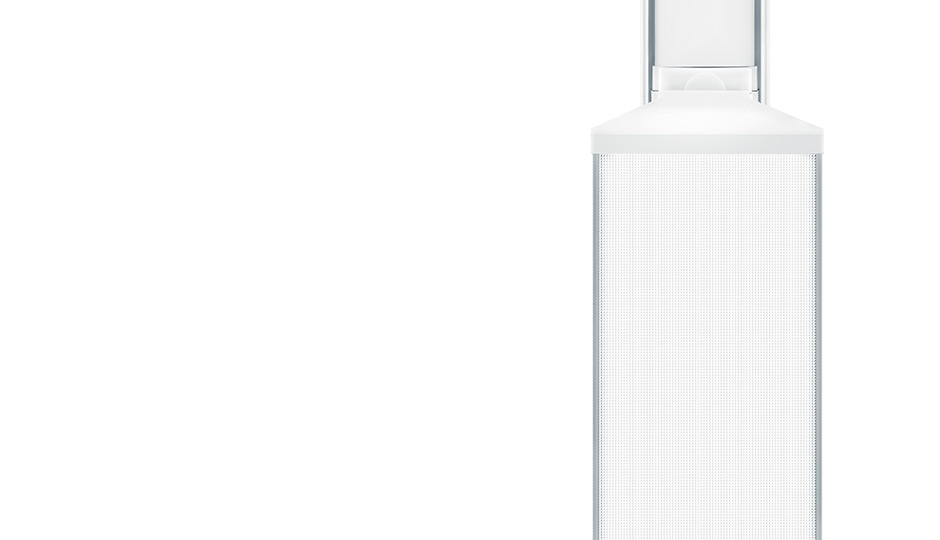

• With minimised glare through LED point reflexion of the task area, and when directly looking into the luminaire, the 1.5m long TECTON batten luminaire with MPO optic handles demanding visual tasks with increased requirements, e.g. at workstations for precision assembly, in laboratories, schools, supermarket check-out areas or offices

• MPO optic provides for uniform light distribution, without the LEDs appearing as irritating individual light points

• A gentle brightening of the ceiling and the lateral translucent optic make for a wide beam pattern with soft edges

• LED lumen packages: 5500 lm, 6500 lm and 8000 lm
• Colour temperature: 4000 K
• Colour rendering: Ra 80
• Also available with Tridonic industrial control gear

• Design TECTON MPO LED Zumtobel

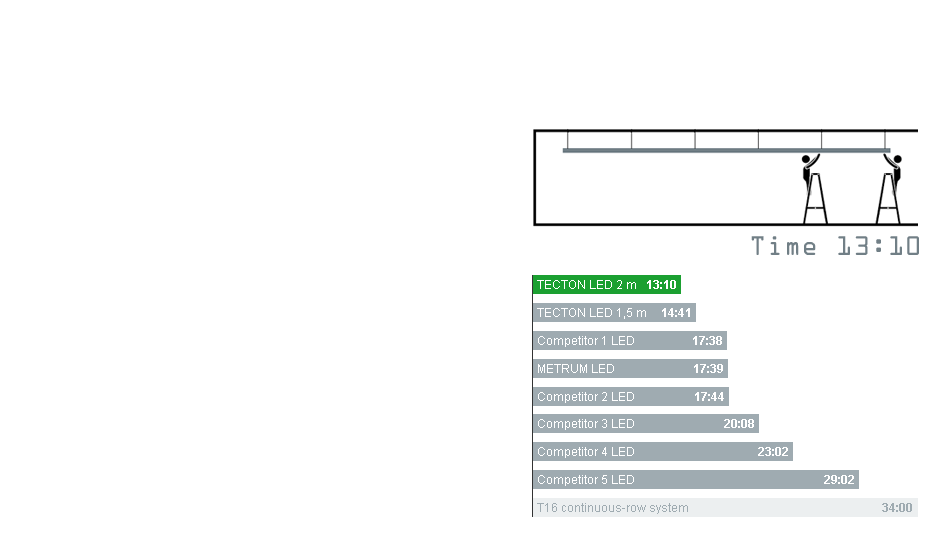

• A comparison of eight different continuous-row LED systems regarding the time required for installation of a continuous-row LED system (15 m) conducted by independent Refaconsult GmbH showed that TECTON LED can be installed considerably faster than comparable products.

• Up to 55 percent of time is saved in comparison to continuous-row LED systems of competitors

• More than 61 percent of time is saved on average with a TECTON LED solution, compared to conventional T16 solutions

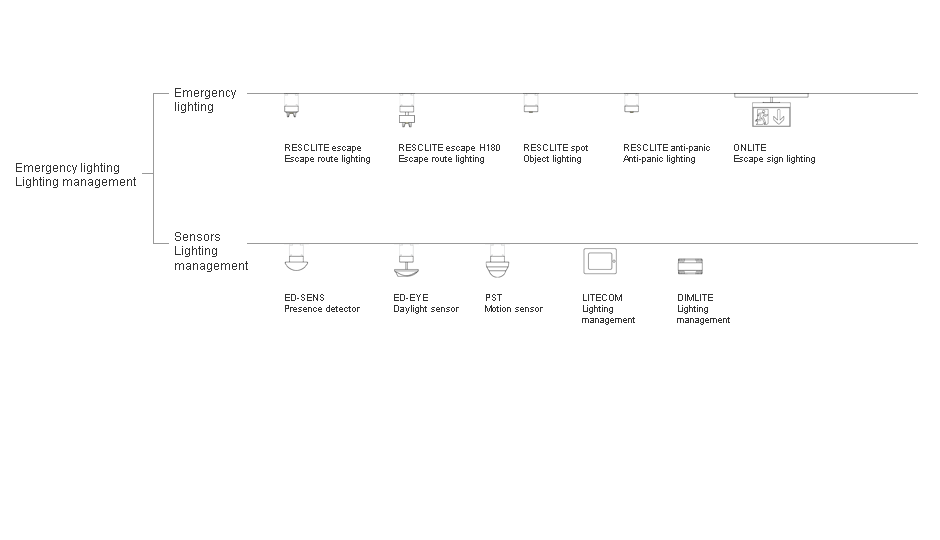

• TECTON already integrates emergency lighting circuits and
  DALI control lines
